EM2210

Mini EMA thickness gauge.

A pocket-size thickness gauge with A-Scan.

ORDER (price on request)

Video about EM2210

EM2210 Brochure

Integration with AR glasses or Android tablet

No cleaning, No couplant

Operating gap:
up to 3 mm

Operating gap: up to 3 mm

The operating gap of up to 3 mm (dirt, rust, salt deposits, paint, varnish, enamel, plastic or other non-conductive coatings)

Integrations

Connection to a tablet or other Android device allows expanding the EM2210 capabilities to work with A-scans, B-scans, etc. At your request, EM2210 can equipped with AR glasses for working in hard-to-reach places

No cleaning, No couplant

The EM2210 measures thickness without usage of couplant and without surface preparation

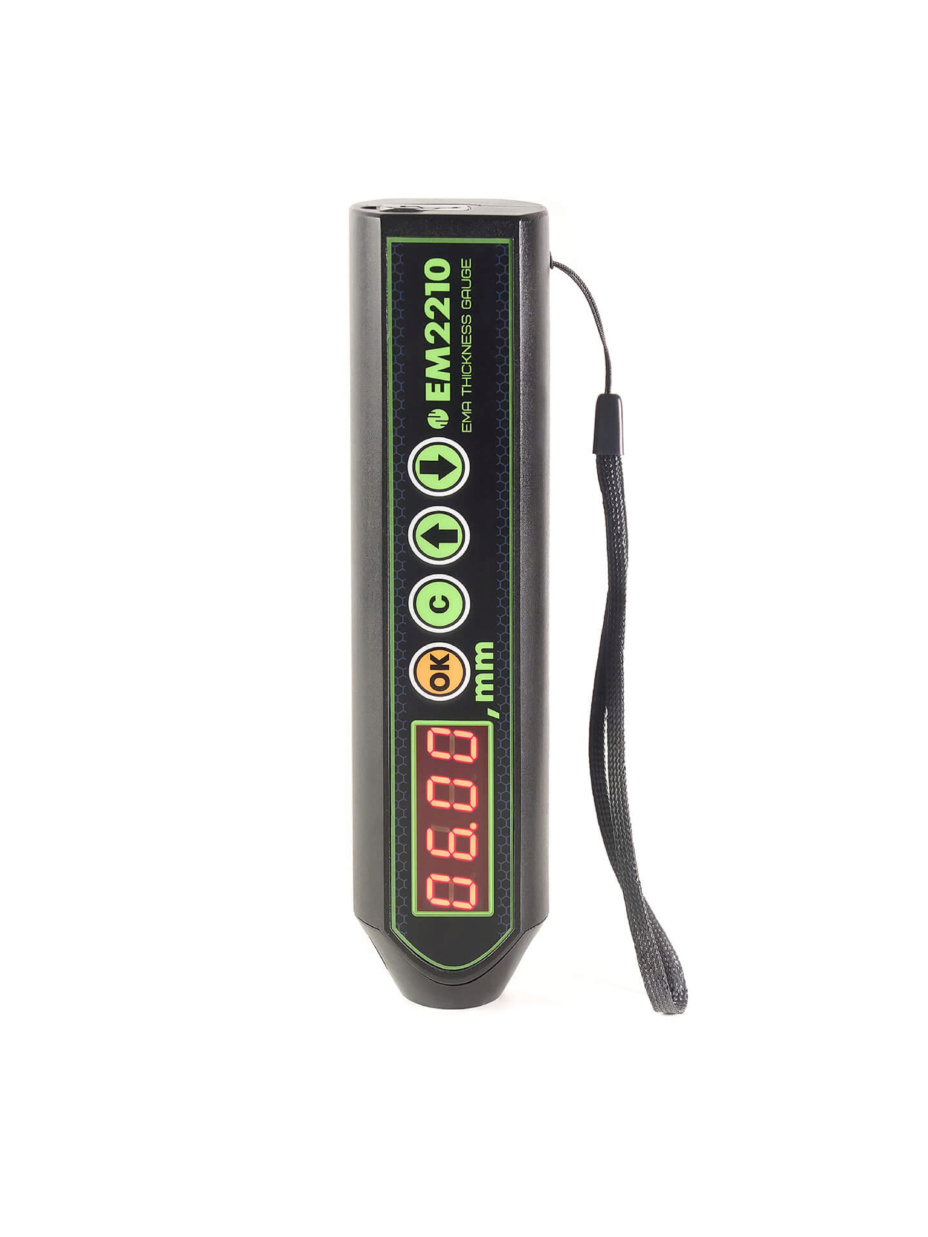

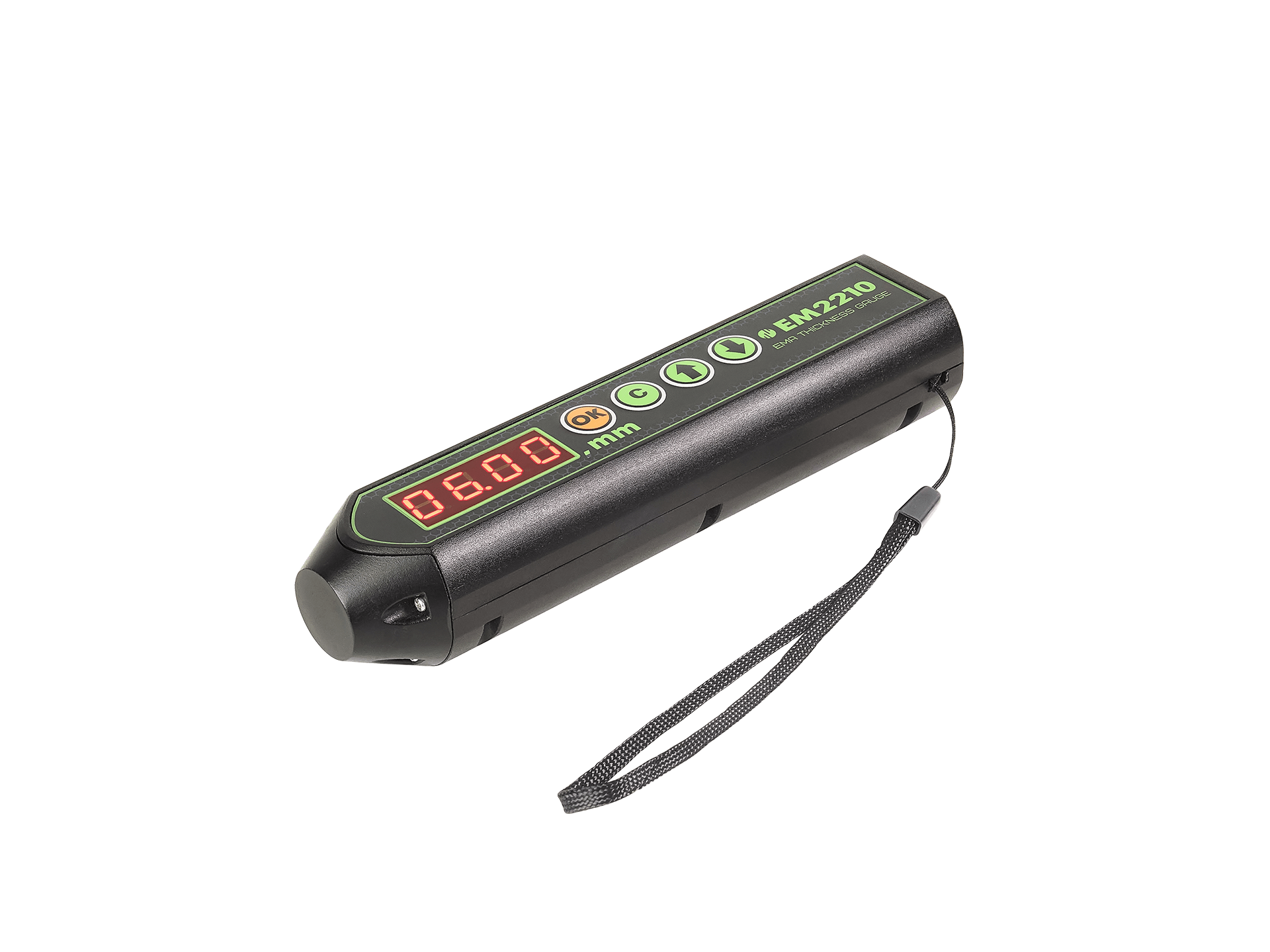

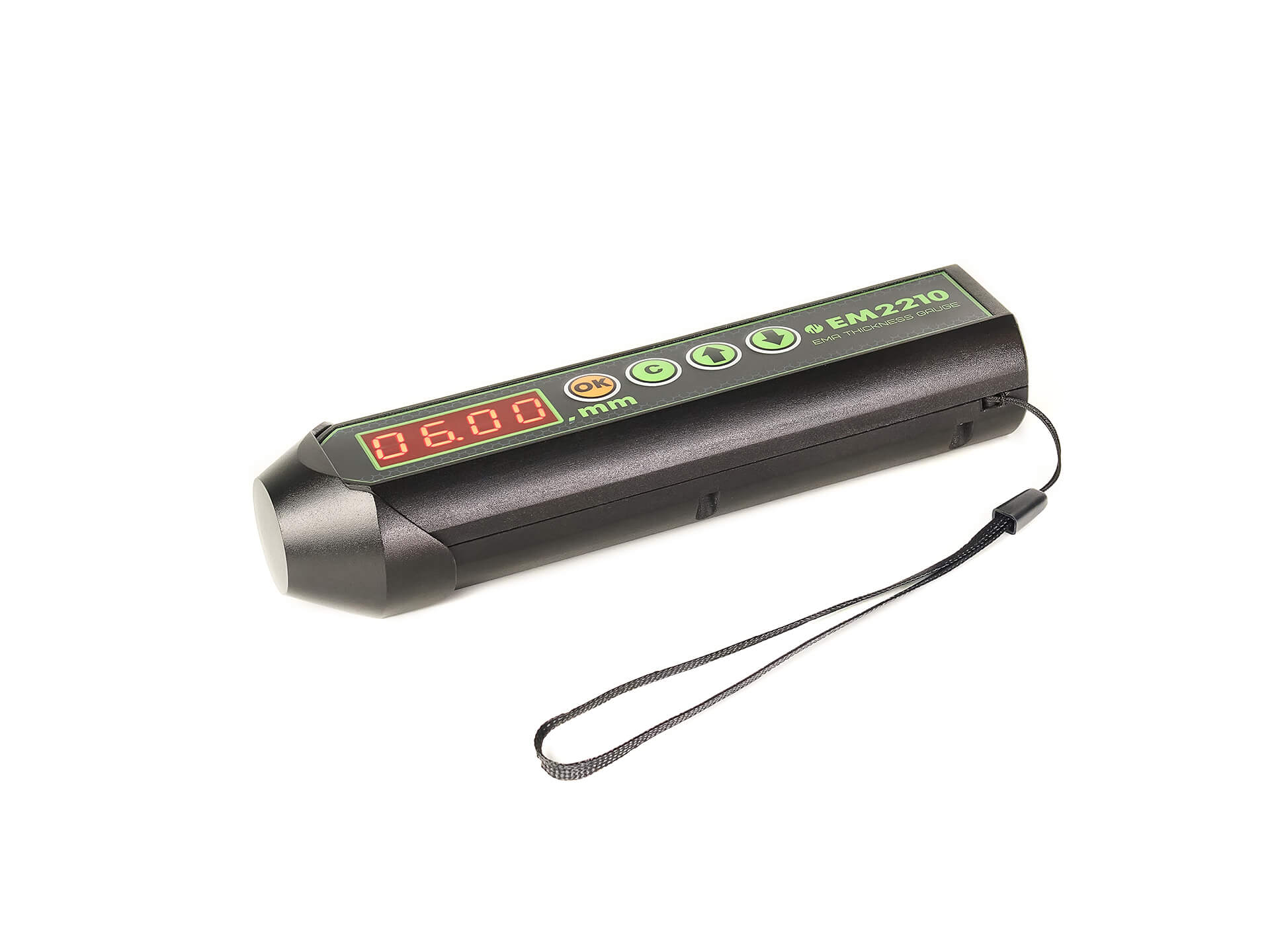

EM2210 Thickness Gauge

A pocket-size thickness gauge. Working with A-scan while connected to an Android smartphone or tablet is implemented

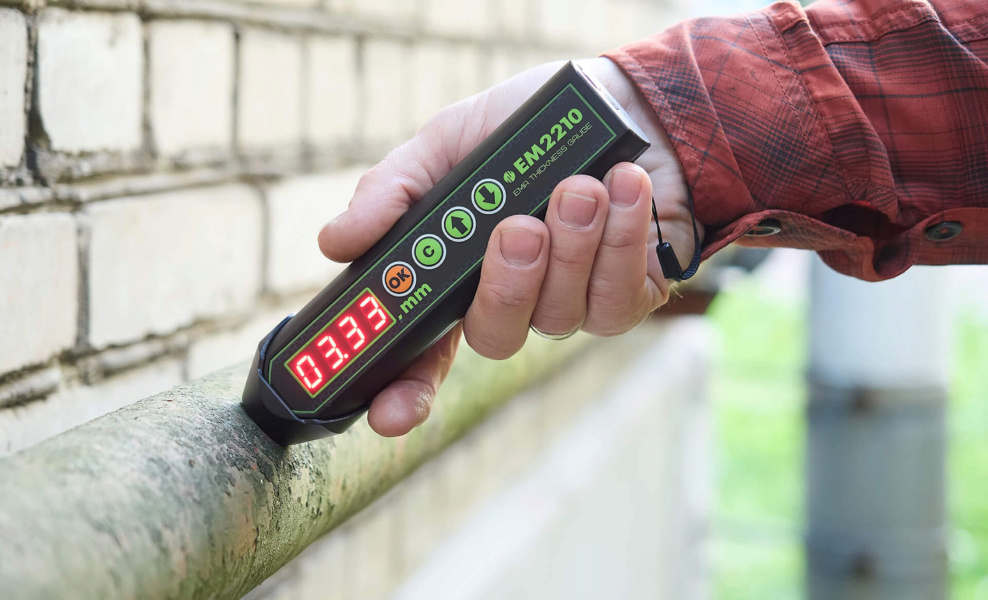

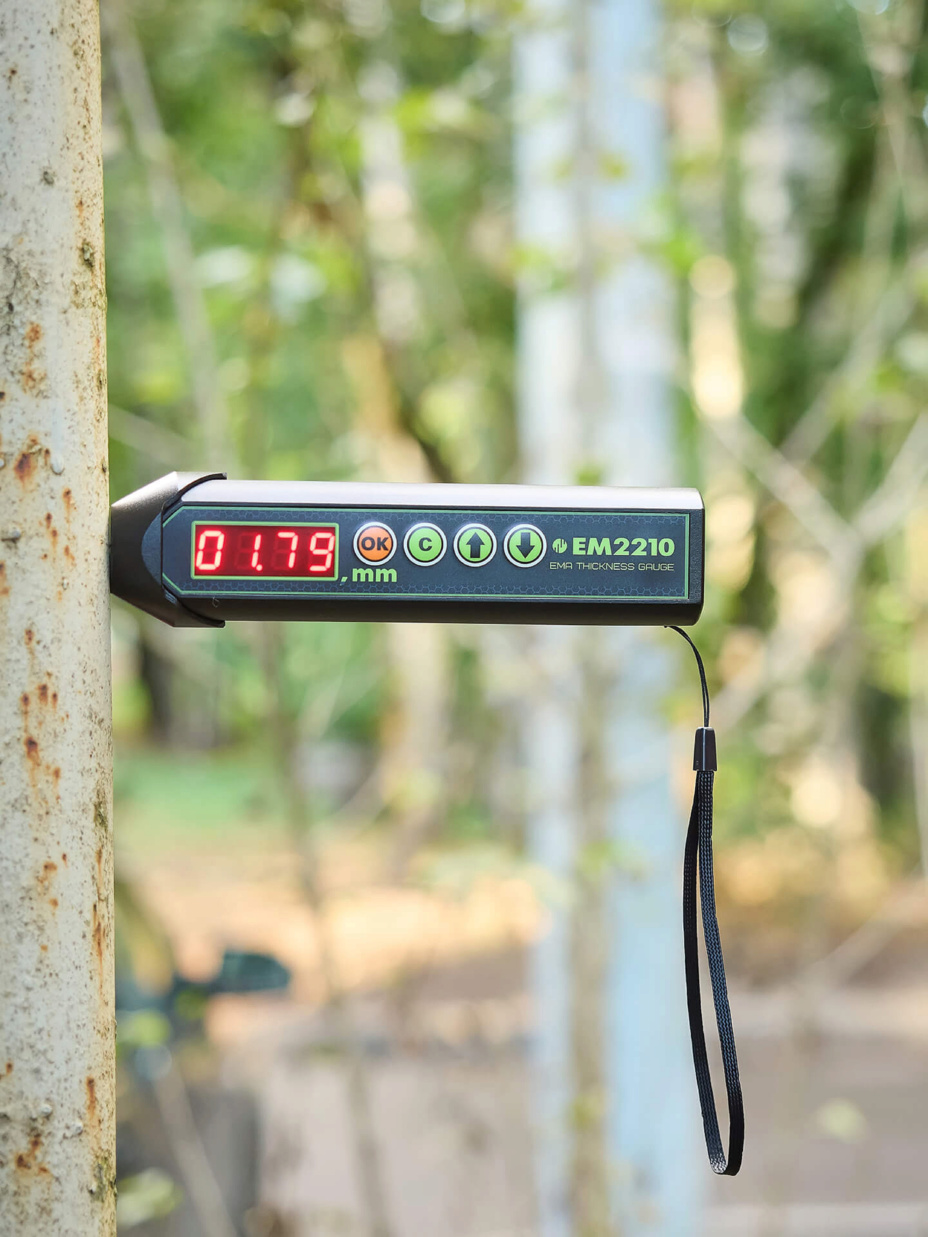

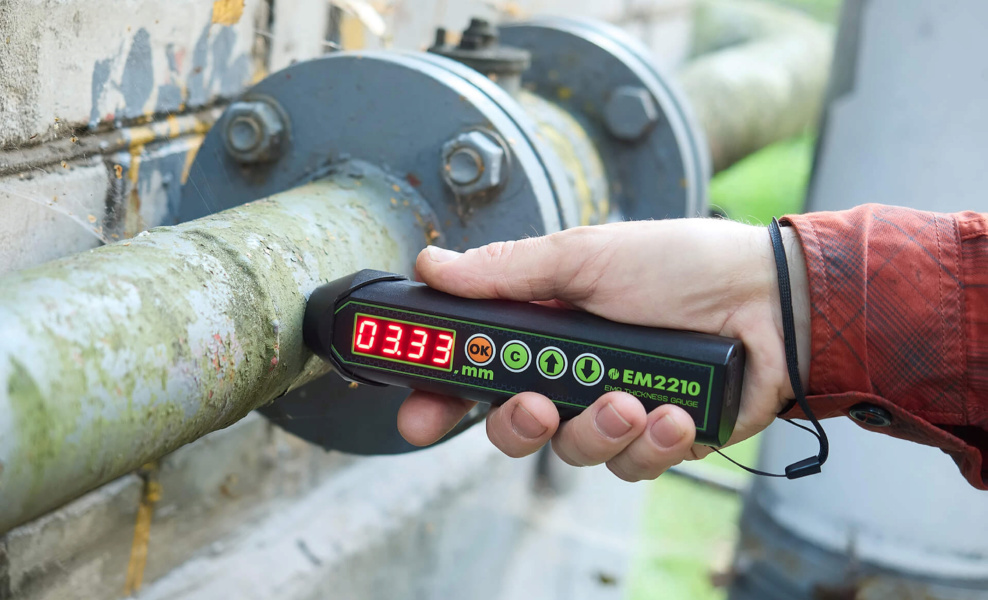

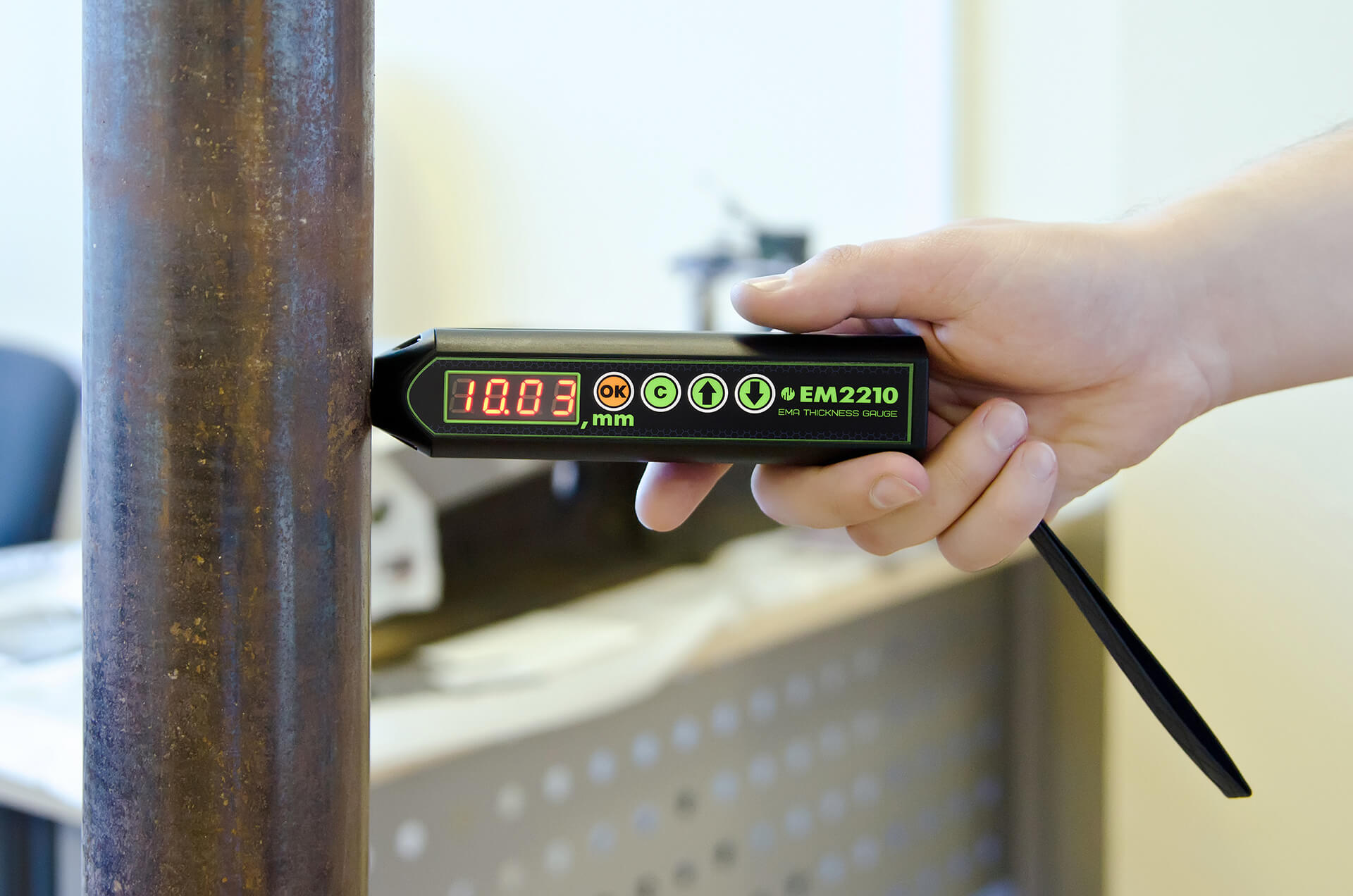

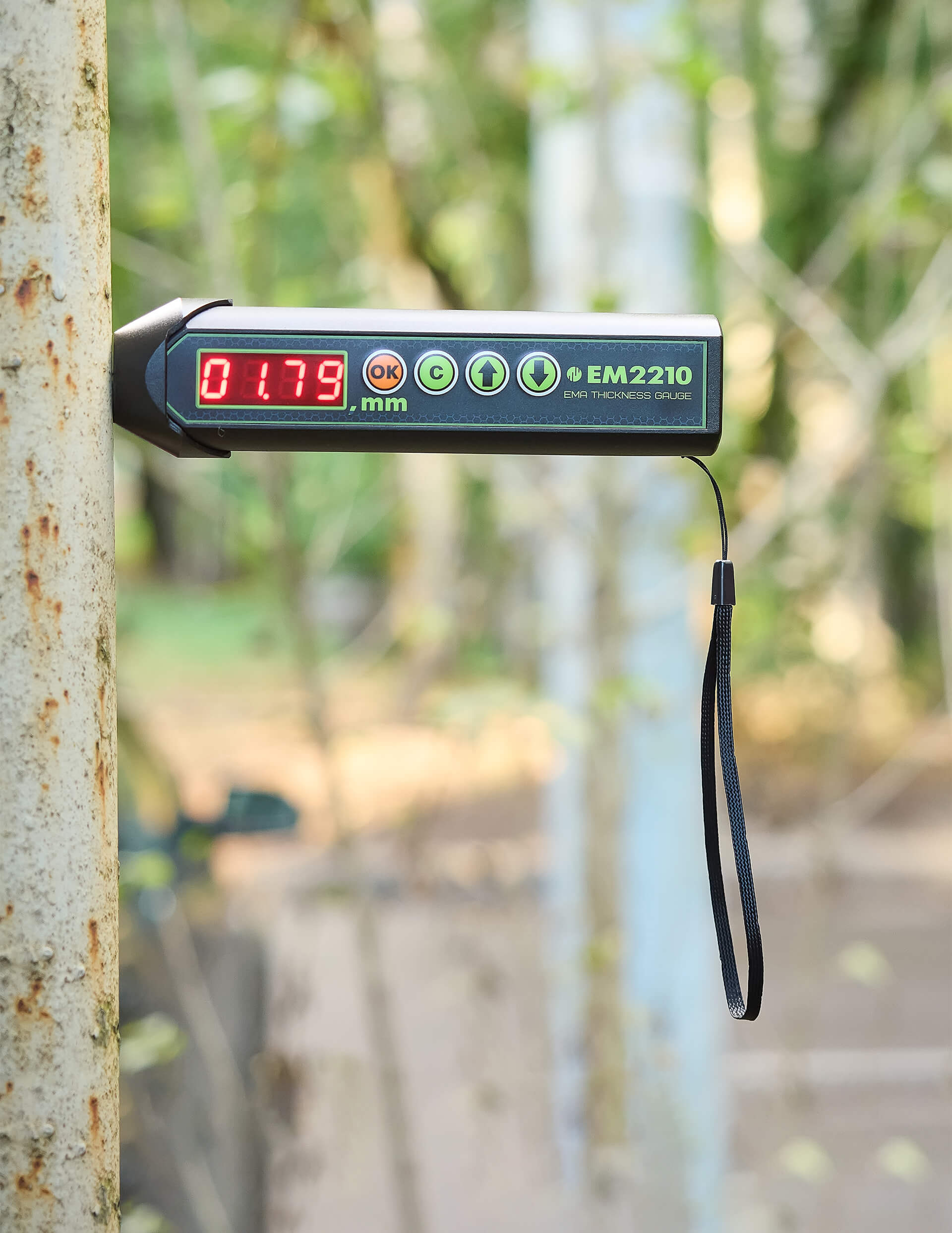

The EM2210 thickness gauge measures thickness of steel pipes, sheet metal, rods, and other products made from steel, aluminum and other metals without couplant and preliminary surface preparation, with an operating gap of up to 3 mm between the transducer and metal.

EM2210 allow measurements:
• without usage of couplant;
• without surface preparation;
• after a single button touch;
• through the operating gap up to 3 mm;
• both on flat surfaces and on surfaces with a radius of curvature of 10 mm and more.

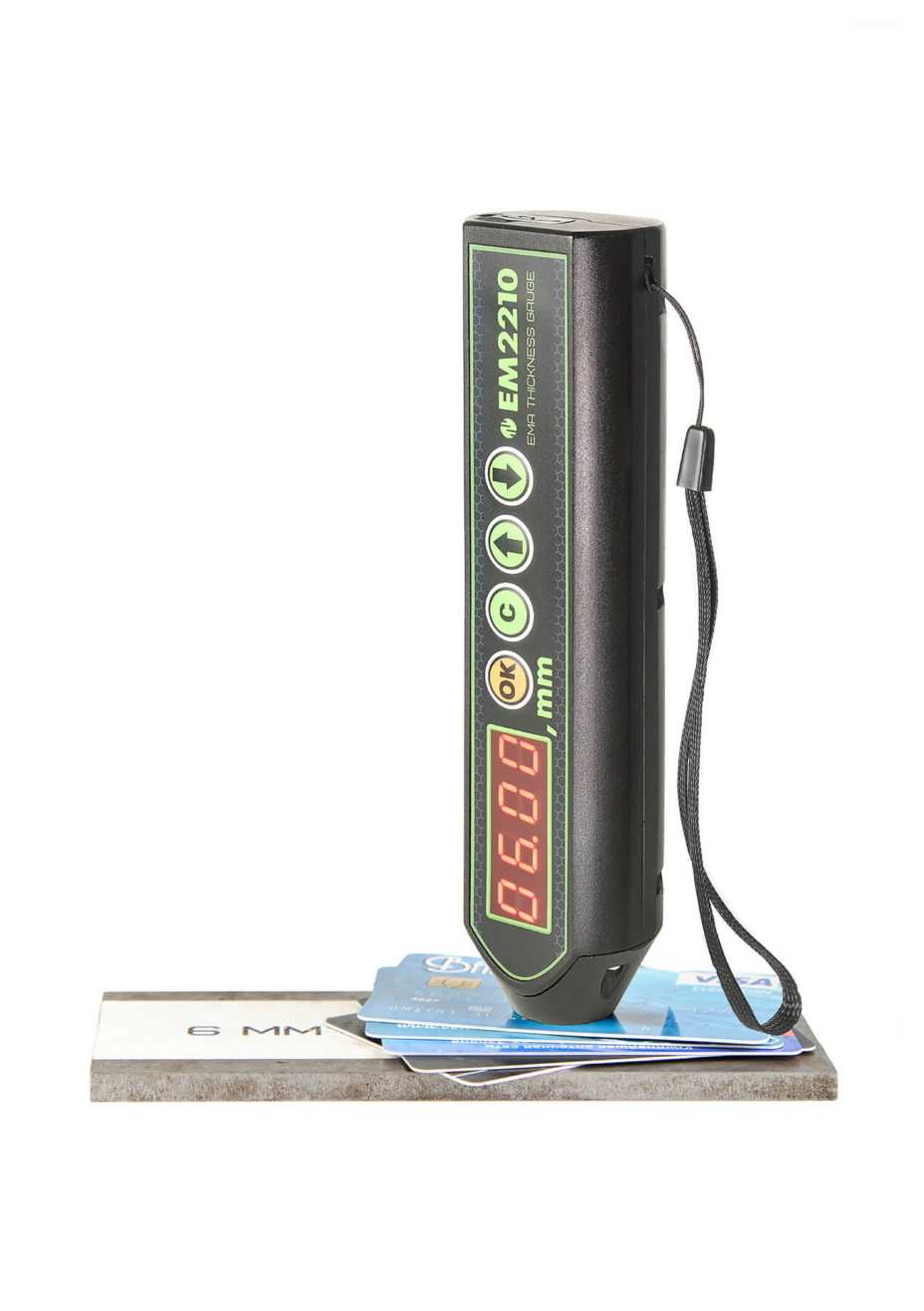

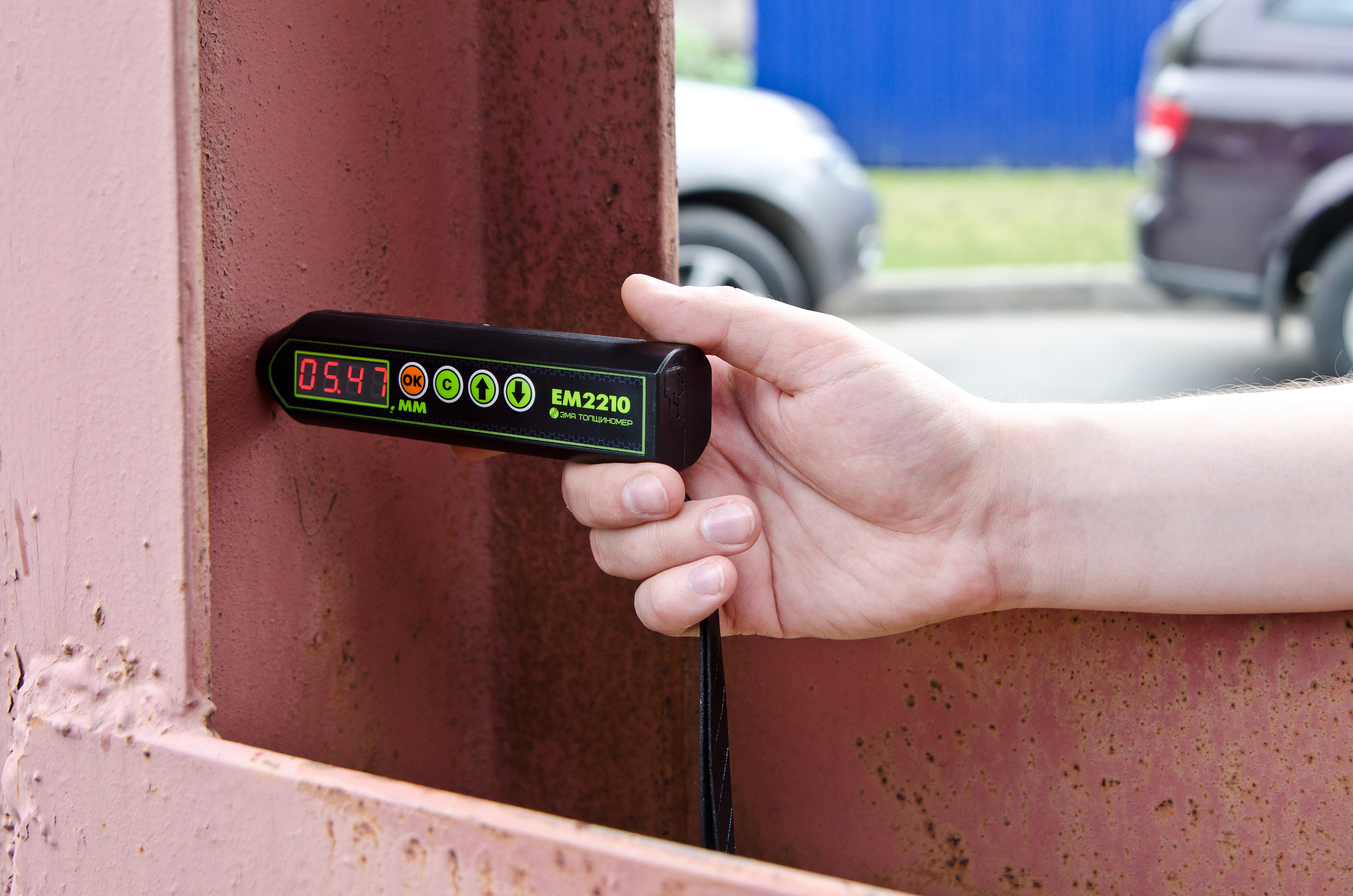

The gap can consist of dirt, rust, salt deposits, paint, varnish, enamel, plastic or other non-conductive coating.

ORDER (price on request)

EM2210 Brochure

EM2210 Manual

ScanView Manual

EM2210 + Inmo Air 2 Glasses

The tilt angle makes a minor effect on the device readings in contrast to conventional thickness gauges with piezoelectric transducers that require a transducer fixed in a certain position.

The EM2210 uses a special data processing algorithm that provides correct thickness measurements in the presence of disturbing factors such as metal anisotropy, usage of several reflectors, exposure to external interference. The algorithm allows reducing the human factor and simplifying the device interface.

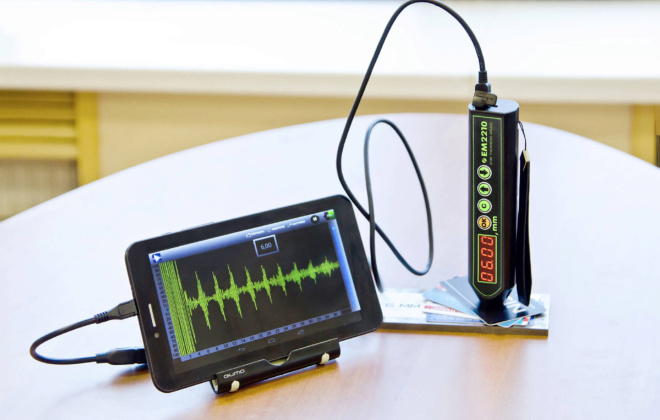

Connection to a tablet, smartphone or other Android device allows expanding the EM2210 features to the level of modern flaw detectors capable of displaying and saving A-scans, B-scans, working with gates, selecting a thickness measurement mode, signal processing parameters, etc.

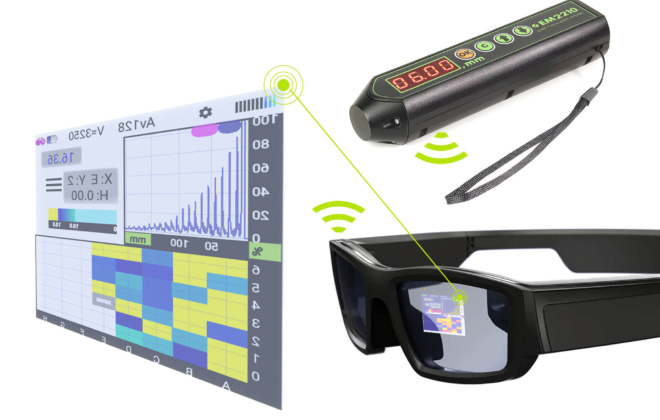

At your request, the EM2210 can be equipped with AR glasses. AR glasses allow using the EM2210 in hard-to-reach places, where display readouts are impossible or difficult. In this case the readouts are displayed on the lenses of AR glasses and the operator can always see them.
