EM1401

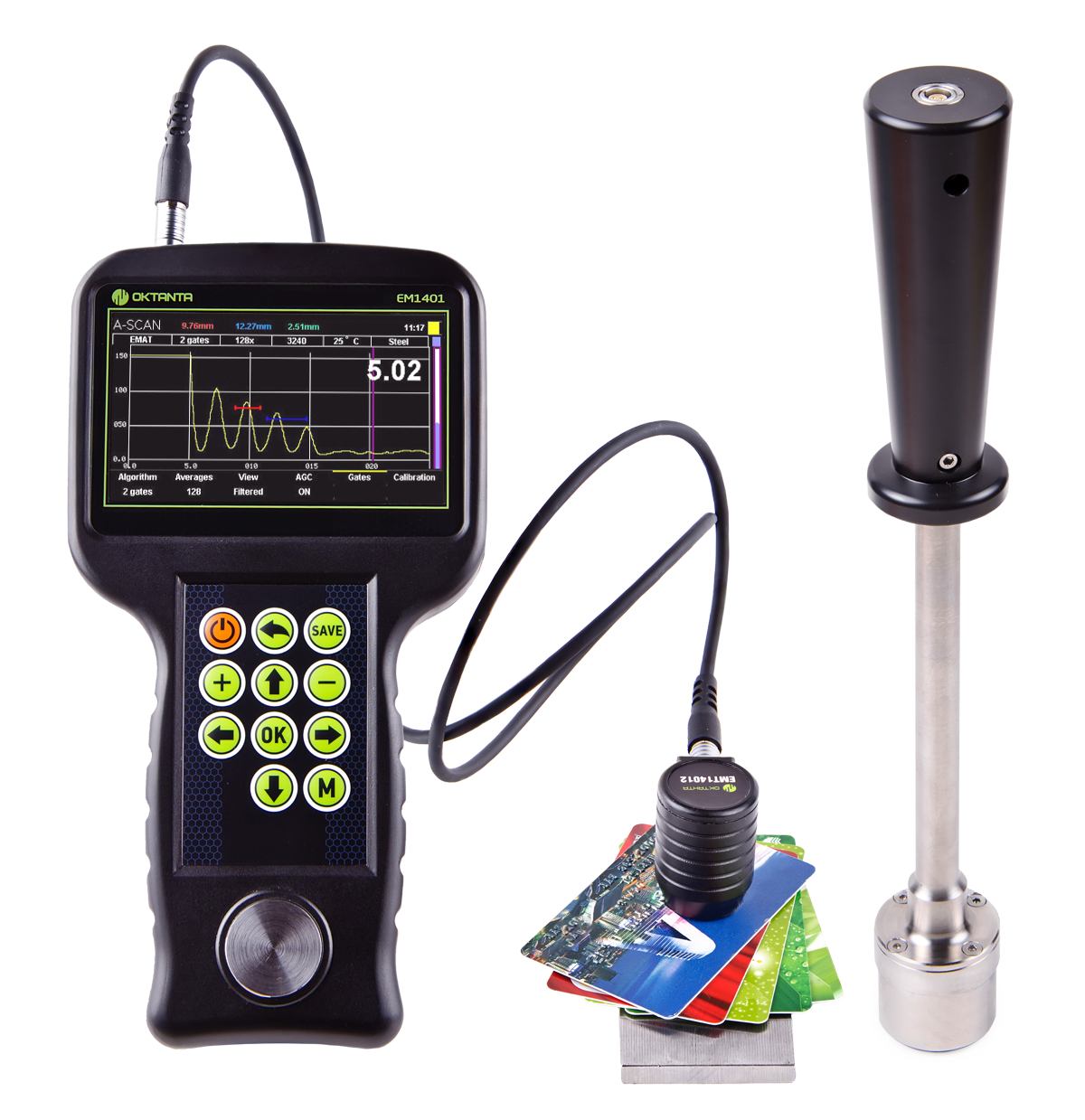

EMA thickness gauge.

Measures thickness through a gap of up to 6 mm (without surface preparation and couplant!).
ORDER (price on request)
Video about EM1401 EM1401 Brochure
Color display protected by impact-resistant glass
High-temperature transducer (on request)
Operating gap:
up to 6 mm
Operating gap: up to 6 mm

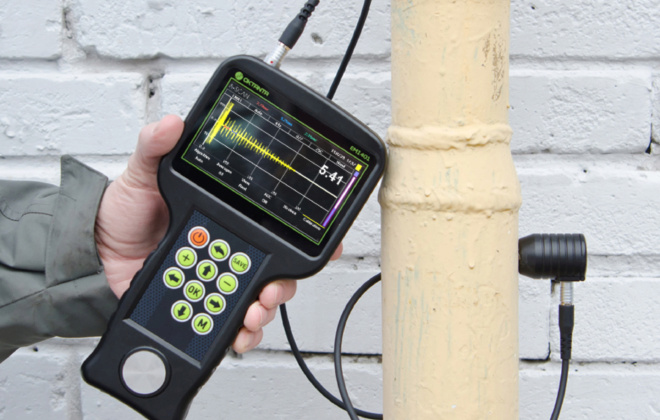

The operating gap of up to 6 mm (dirt, rust, salt deposits, paint, varnish, enamel, plastic or other non-conductive coatings)
Color display protected by impact-resistant glass

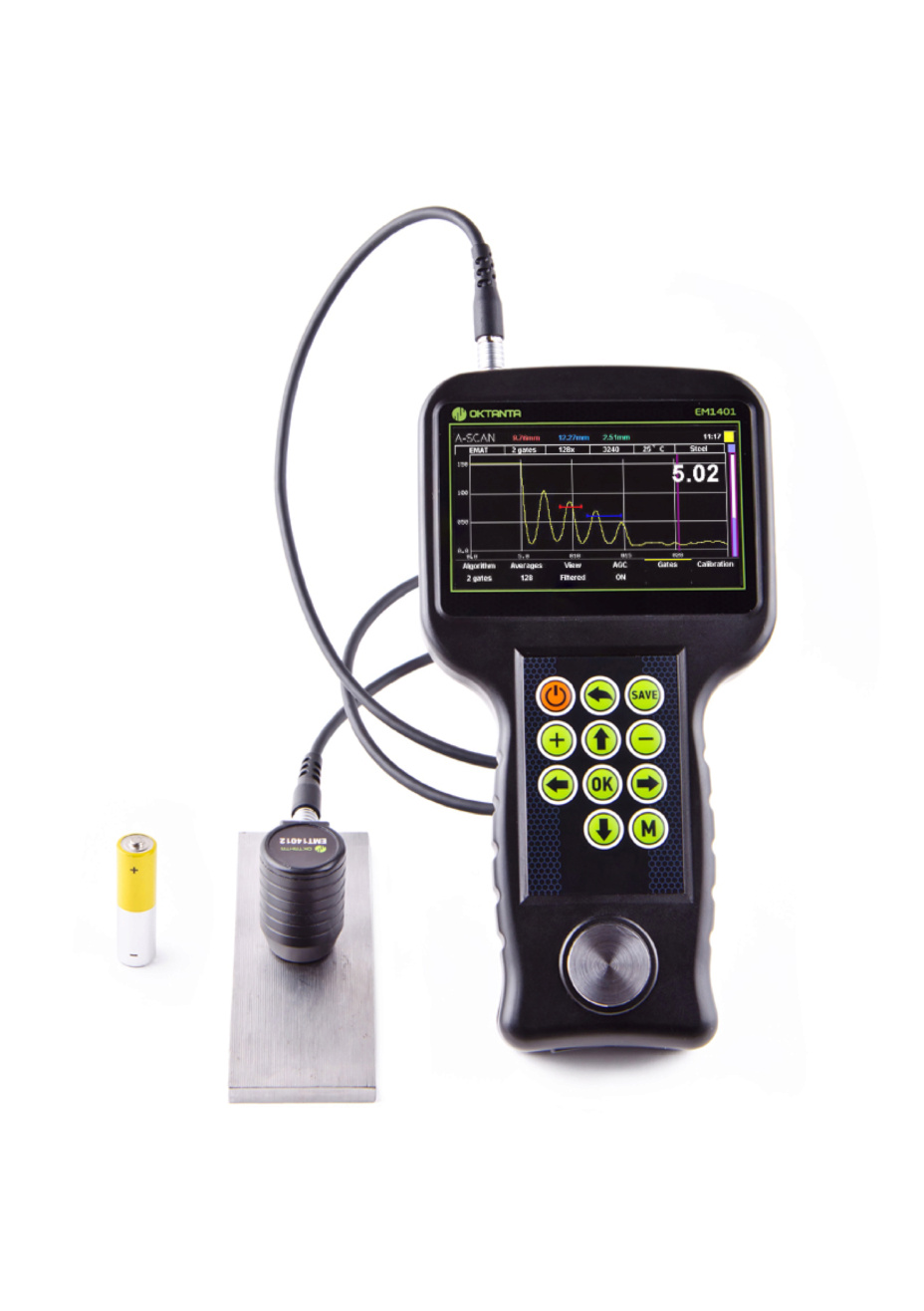

The EM1401 allows the user to analyze A-scans, visualize B-scans, save data conveniently on C-scans in a matrix form
No cleaning, No couplant
The device measures thickness without usage of couplant and without surface preparation
EM1401 Thickness Gauge

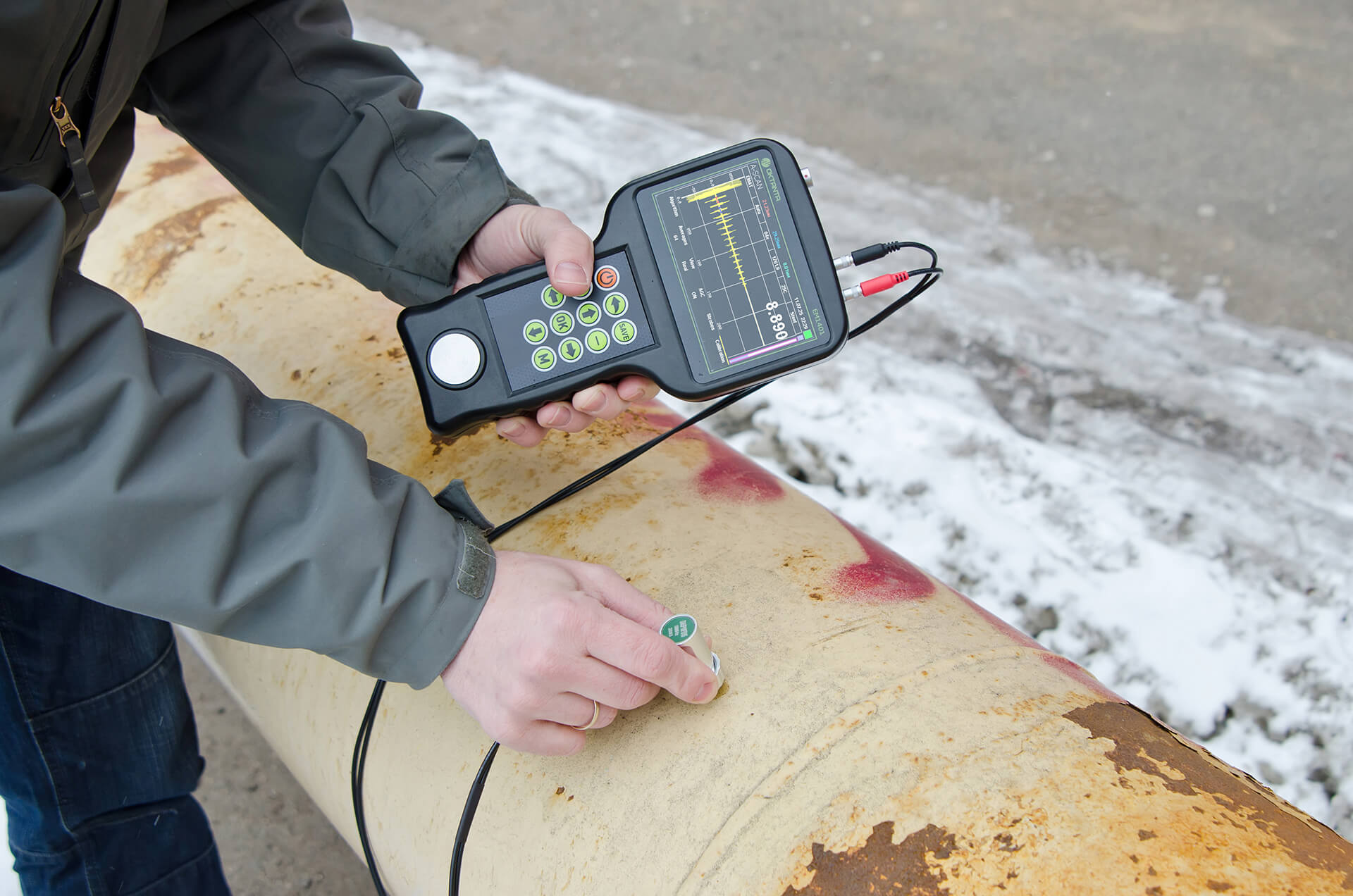

Is designed for thickness measurements of steel pipes, sheet metal, rods and other products made from steel, aluminum and other metals

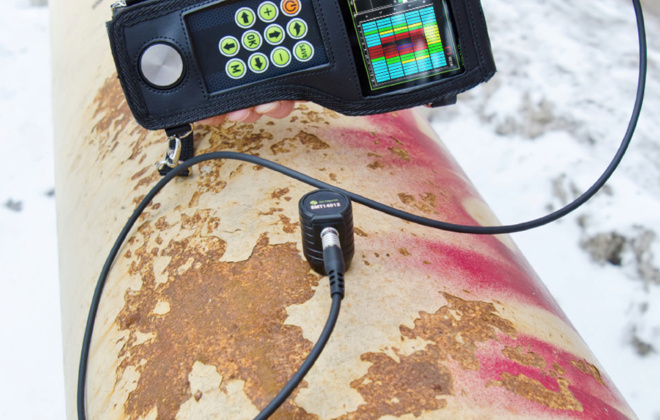

The EM1401 EMA thickness gauge measures thickness of steel pipes, sheet metal, rods, and other products made of steel, aluminum and other metals with an operating gap between the transducer and the metal up to 6 mm. The gap can consist of dirt, rust, salt deposits, paint, varnish, enamel, plastic or other non-conductive coating.

The EM1401 allows measurements without usage of couplant and without surface preparation.

A special high-temperature transducer allows inspection of hot objects heated up to 750 °C.

The EM1401 implements a special algorithm that accounts for changes in the rate of sound propagation in metal induced by temperature.

The EM1401 electromagnetic acoustic thickness gauge allows the user to analyze A-scans, visualize B-scans (three display options), and save data conveniently on C-scans in a matrix form. If necessary, the user can work with gates, select a thickness measurement mode, signal processing parameters, etc.

Various surfaces

Works both on flat surfaces and on surfaces with a radius of curvature of 10 mm and more

EMAT technology

The technology enables thickness measurement with no couplant and preliminary surface cleaning

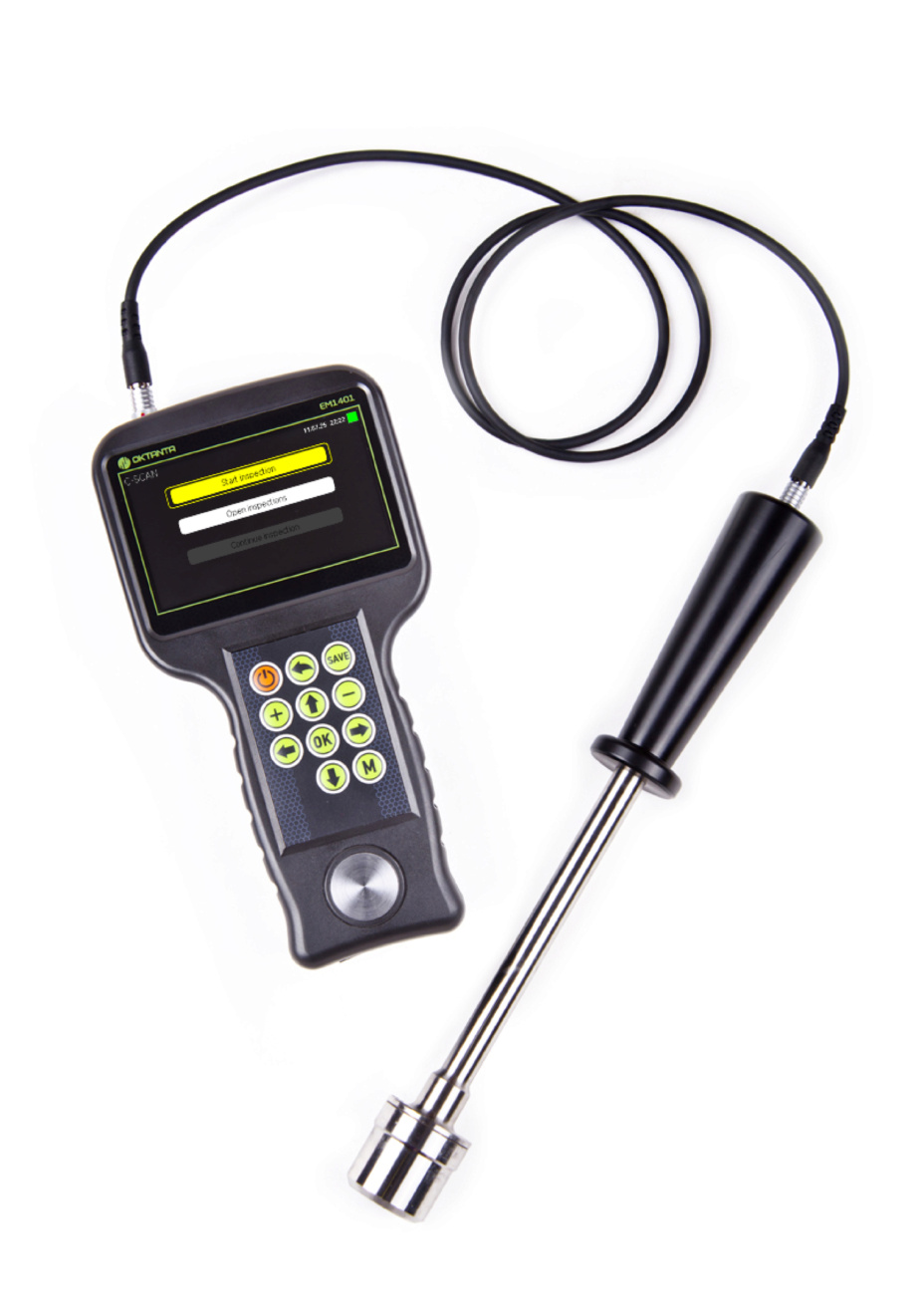

High-temperature transducer (on request)

For standard EMA transducers, the operating temperature range on the test object surface is -20…+80 °С. Special EMT14014T transducer measures thickness on objects heated up to 750 °C

ORDER (price on request) EM1401 Brochure EM1401 Manual

Tilt angle makes a minor effect on the device’s readings, in contrast to conventional thickness gauges with piezoelectric transducers that require transducer fixed in a certain position.

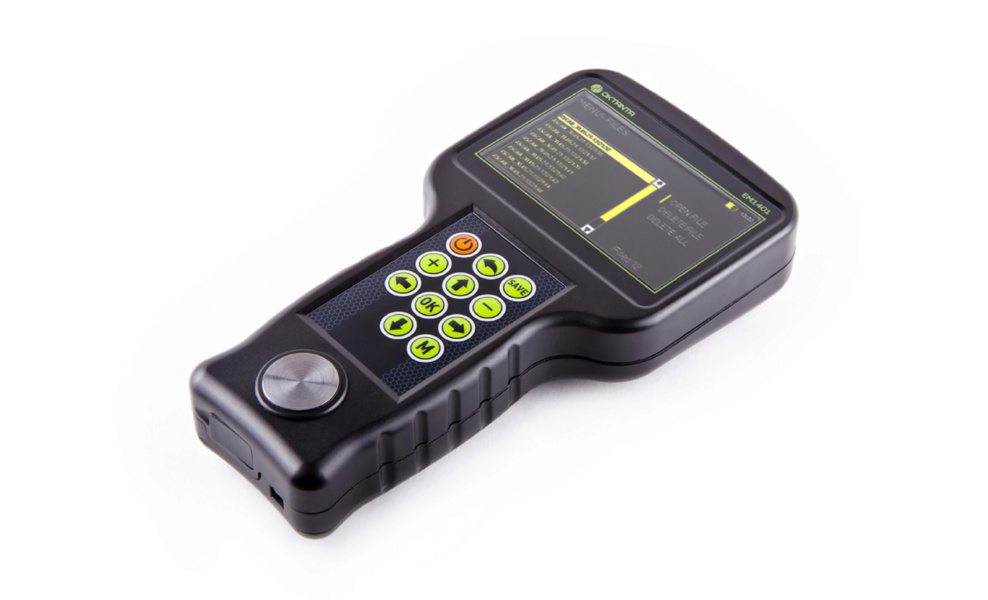

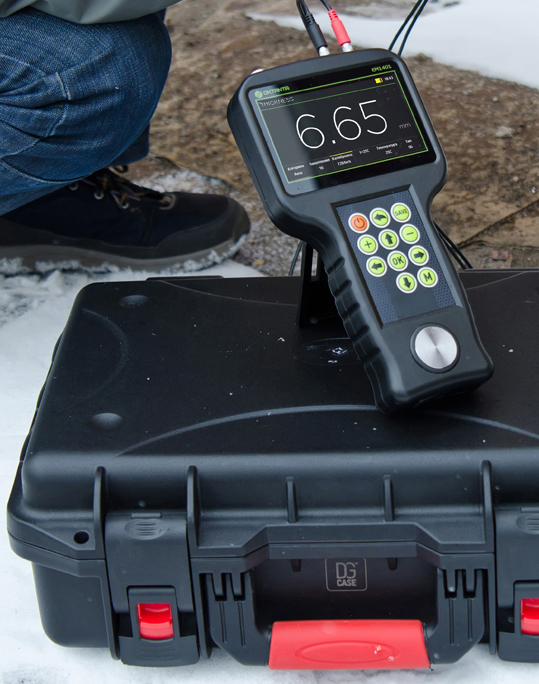

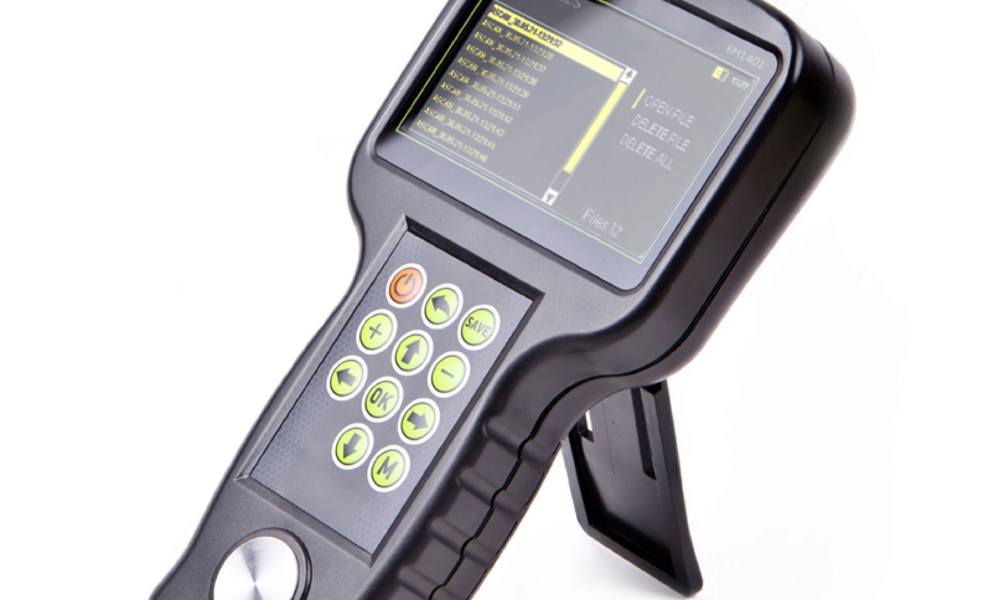

The EM1401 thickness gauge has a color display protected by impact-resistant glass.

The device uses a special data processing algorithm that provides correct thickness measurements in the presence of disturbing factors such as metal anisotropy, usage of several reflectors, exposure to external interference. In addition to the automatic thickness measurement mode, the EM1401 allows using manual measurement modes based on the first echo and difference between any two echoes. Manual mode is recommended for severely corroded objects.

The EM1401 allows measurements:

• without usage of couplant
• without surface preparation
• after a single button touch
• through the operating gap up to 6 mm
• both on flat surfaces and on surfaces with a radius of curvature of 10 mm and more

Technical specifications

The EM1401 thickness gauge

  • Range of operating ambient temperature
    -20…+50 °С
  • Duration of continuous work without battery recharge
    7 hours
  • Range of sound velocity setting
    1000…9999 m/s with 1 m/s step
  • Highest number of measurements per second
    16
  • Dimensions
    232 x 135 x 44 mm
  • Range of measured thickness for steel
    2…80 mm
  • Range of measured thickness for steel without gap
    2…200 mm
  • Thickness measurement error 2…25 mm
    0.08+0.001·Н mm
  • Thickness measurement error 25…200 mm
    0.1+0.005·Н mm
  • Permissible gap between the EMT14012 transducer and the test object
    Up to 4 mm
  • Permissible gap between the ЕМТ14013 transducer and the test object
    Up to 6 mm
  • Permissible transducer tilt relative to the normal to the test object surface
    ±25 °
  • Lowest permissible radius of curvature of the test object surface
    ≥10 mm
  • Operating frequency of the device
    4 MHz
  • Range of operating temperature on the test object surface
    -20…+80 °C
    (-20…+750 °C where the EMT14014Т transducer is used)
EM 1401

ACCESSORIES

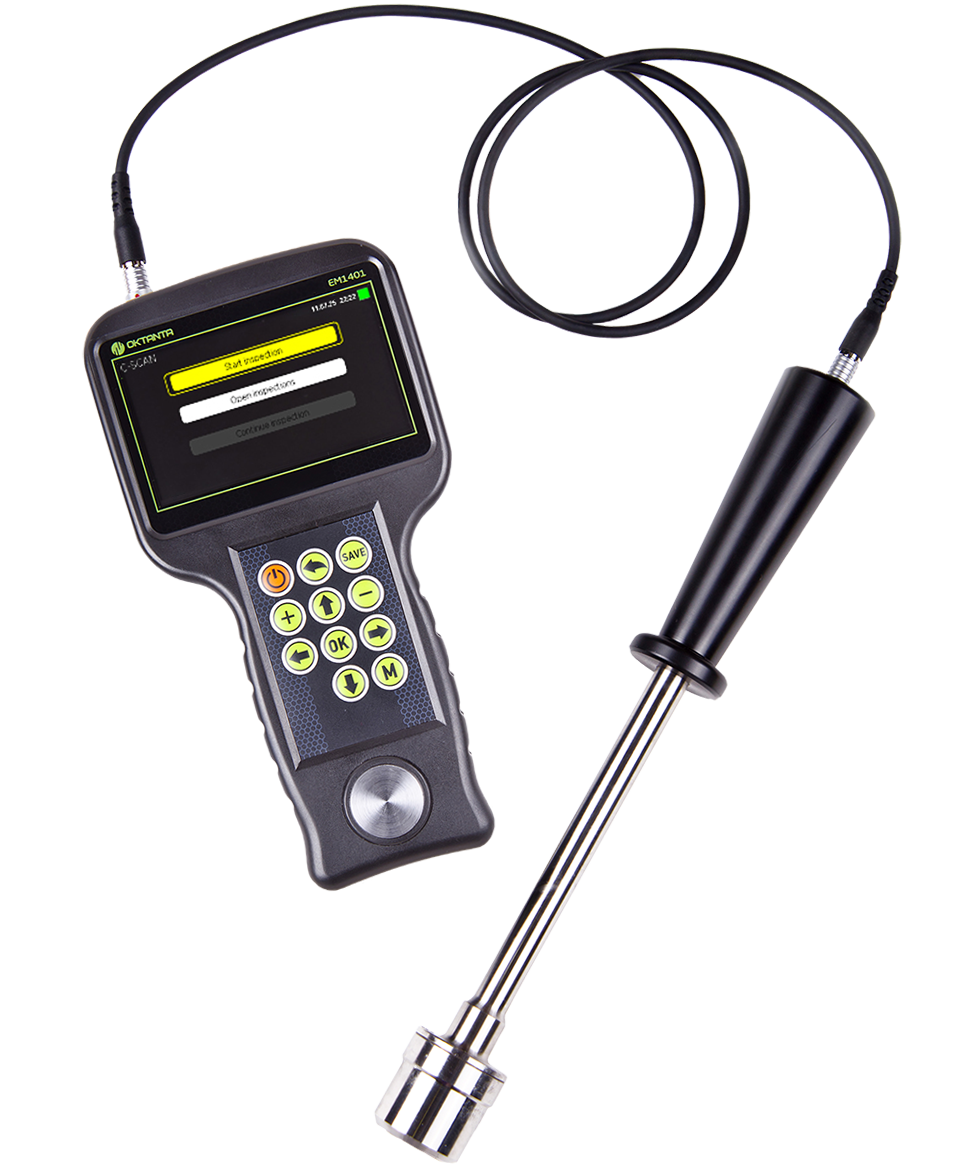

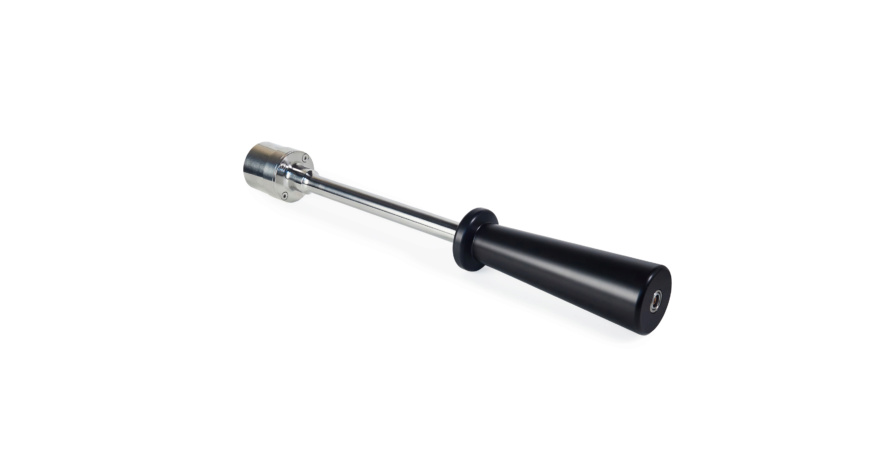

EMT14014T

High temperature EMA transducer for operation with objects heated up to 750 °C

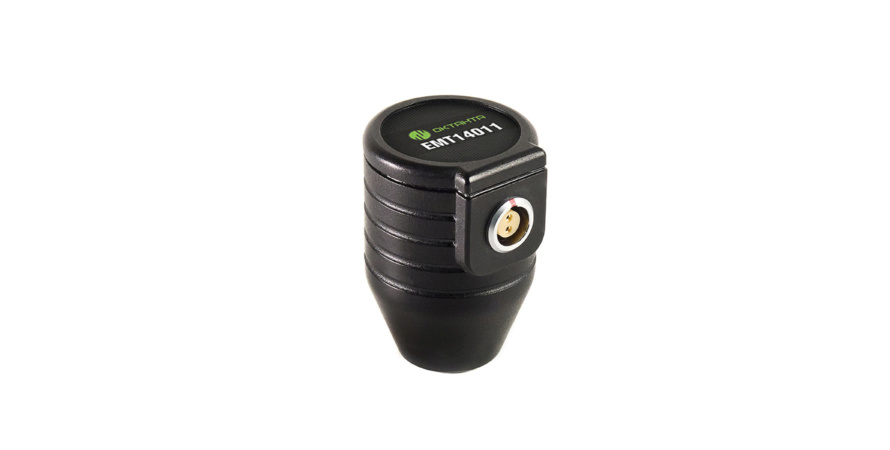

EMT14011

Transducer for operation with a gap up to 3 mm

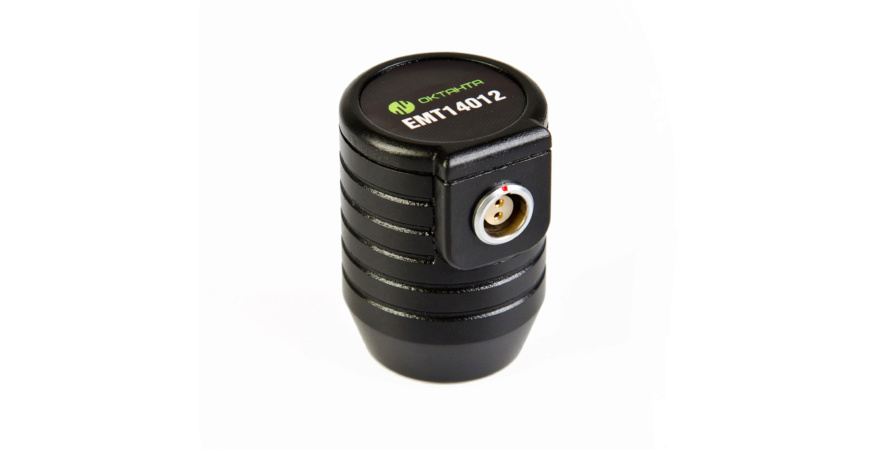

EMT14012

Transducer for operation with a gap up to 4 mm

EMT14012L

Transducer for operation with a gap up to 4 mm

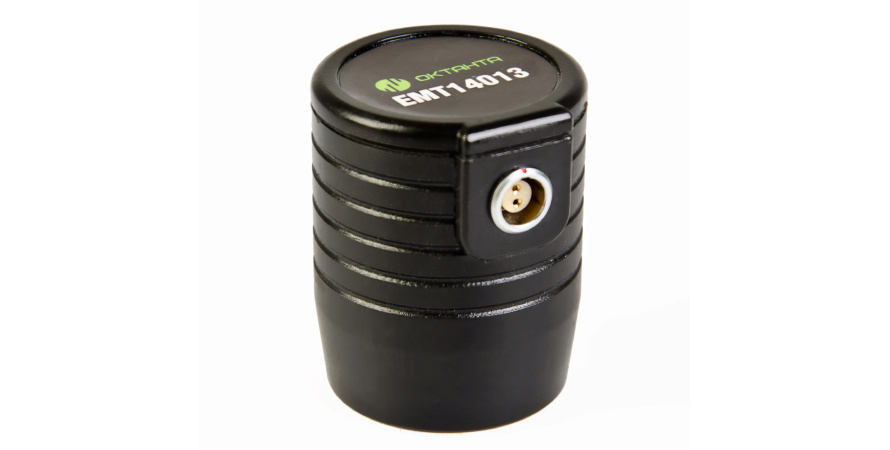

EMT14013

Transducer for operation with a gap up to 7 mm

EMT14013L

Transducer for operation with a gap up to 7 mm

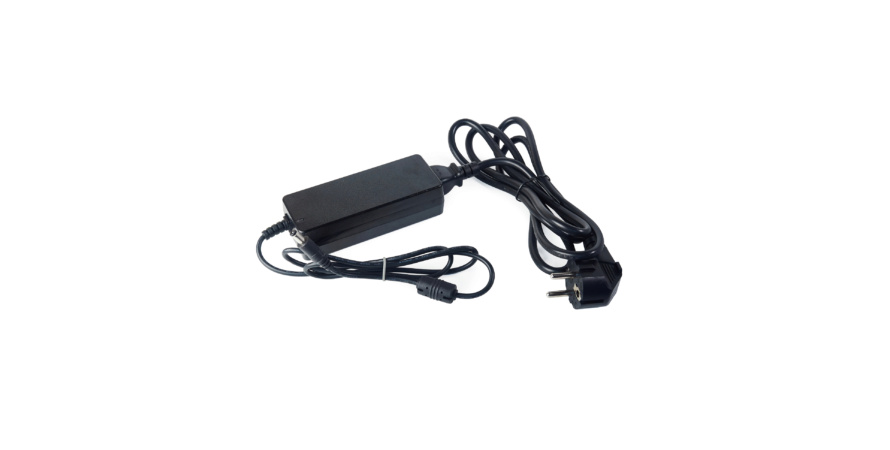

A1401

Power adapter for the EM1401, EM1401 UT thickness gauges

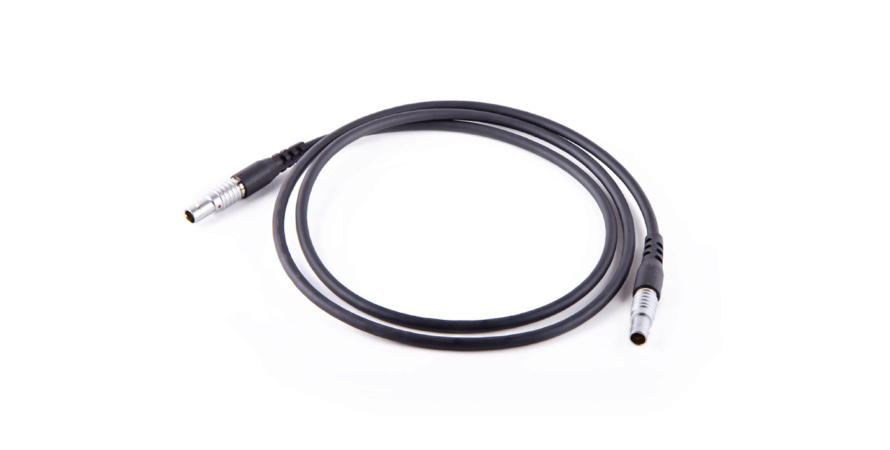

Lemo2-Lemo2

Cable to connect the EM1401 UT, EM1401, EM1501 EMA transducers

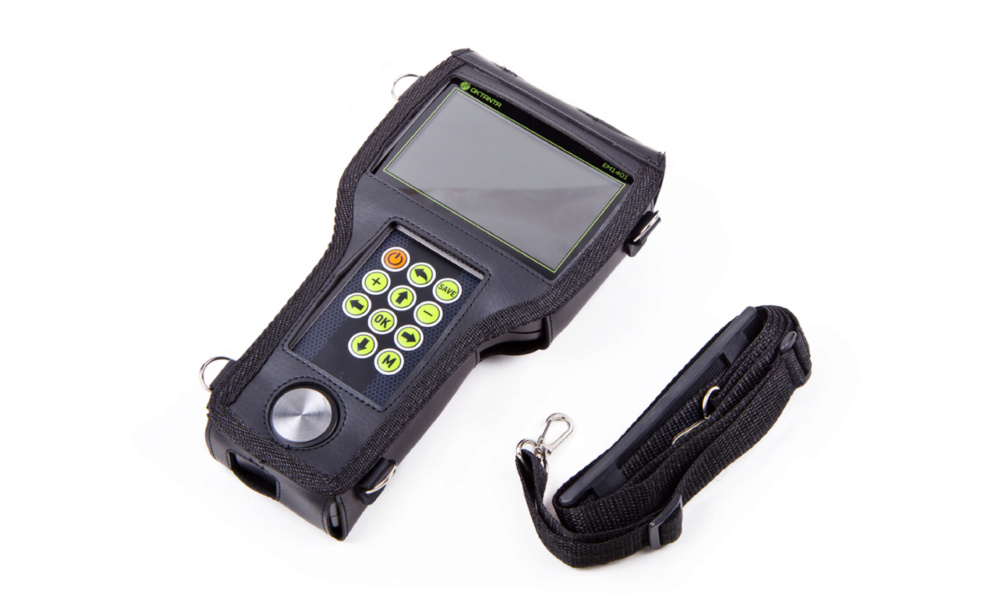

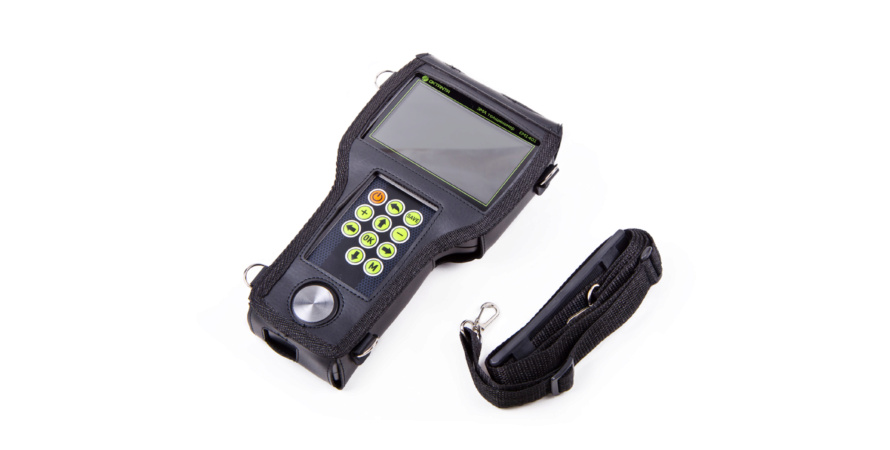

Protective cover EM1401

Protective cover for the EM1401, EM1401 UT thickness gauges
