Ultrasonic thickness gauge.
No couplant
up to 7 mm
Operation with EMAT with a pulsed electromagnet, with conventional EMAT with a permanent magnet and with classic piezoelectric transducers

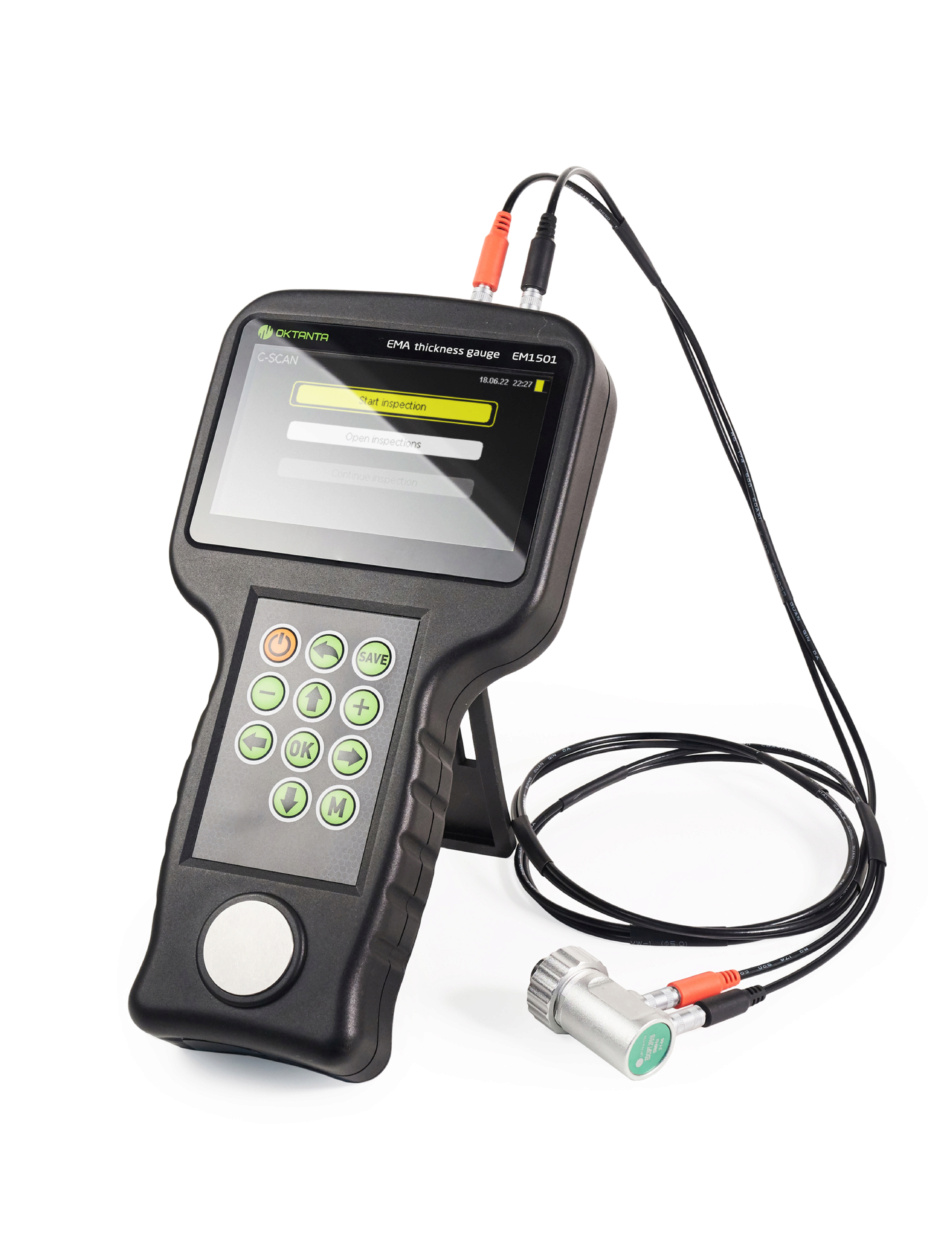

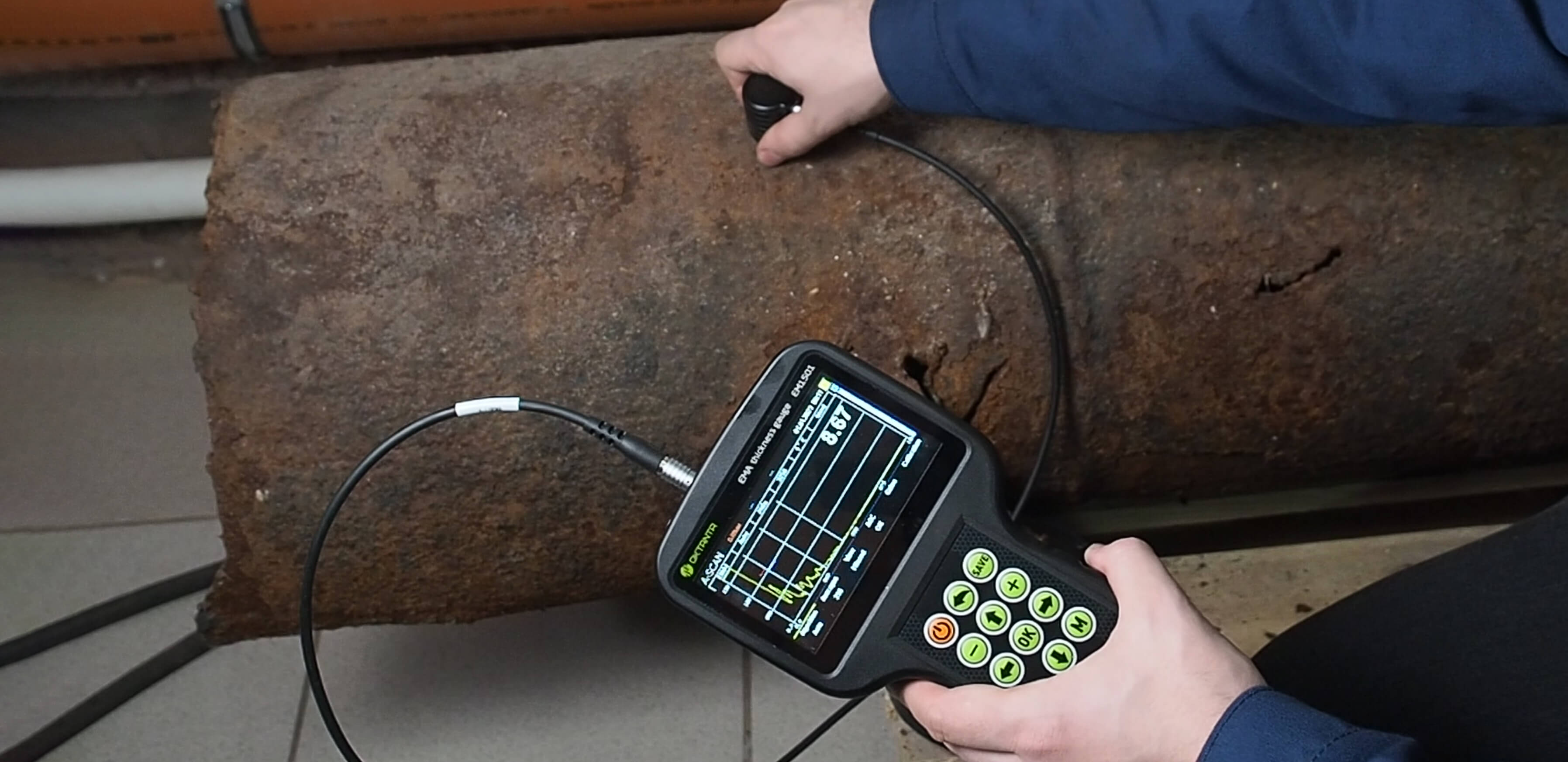

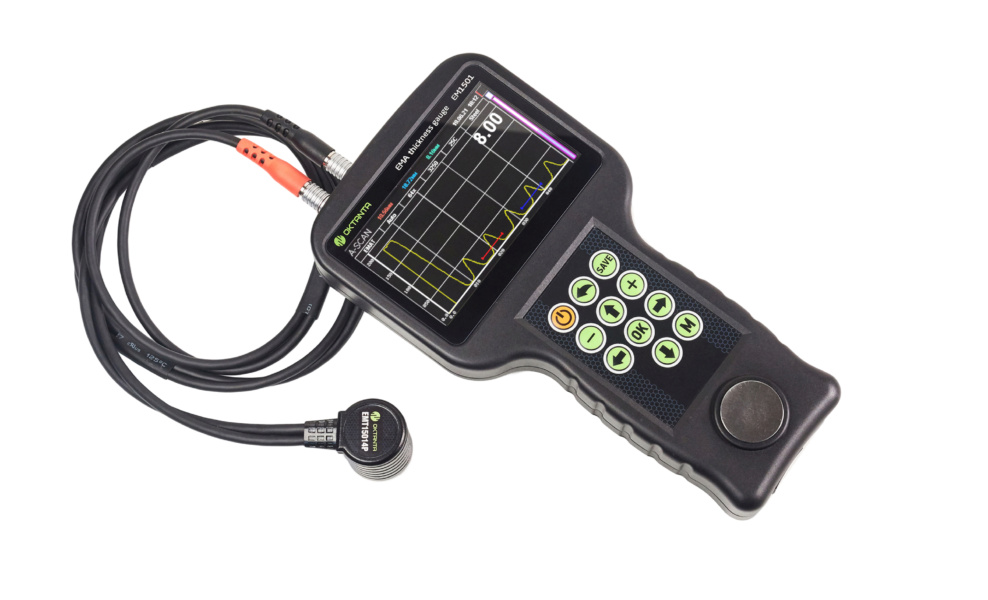

EM1501 thickness gauge inspects steel pipes, sheet metal, rods, and other products made from steel, aluminum and other metals in the convenient, fast and reliable way.

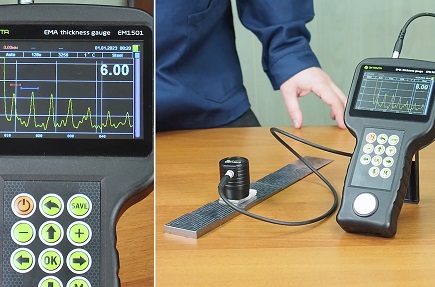

The EM1501 is based on the latest scientific developments in the field of non-destructive testing and the extensive experience of Oktanta engineers. The device measures thickness of the metal through a gap of up to 7 mm (the largest value compared to the other EMA thickness gauges).
A special high-temperature transducer allows inspection of hot objects heated up to 750 °C.

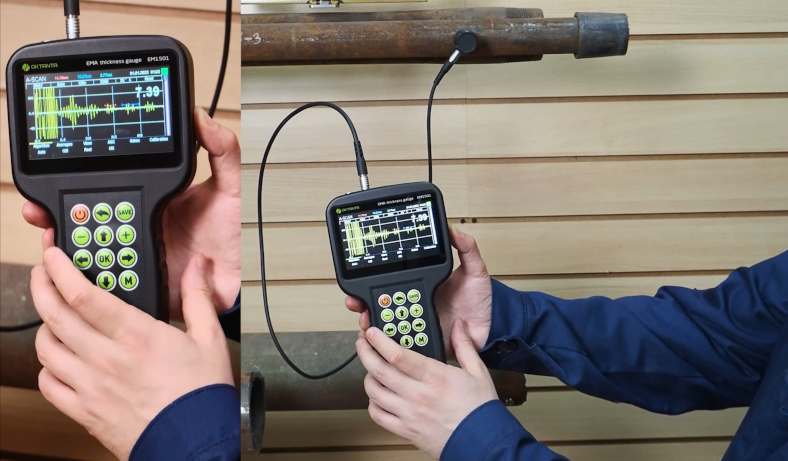

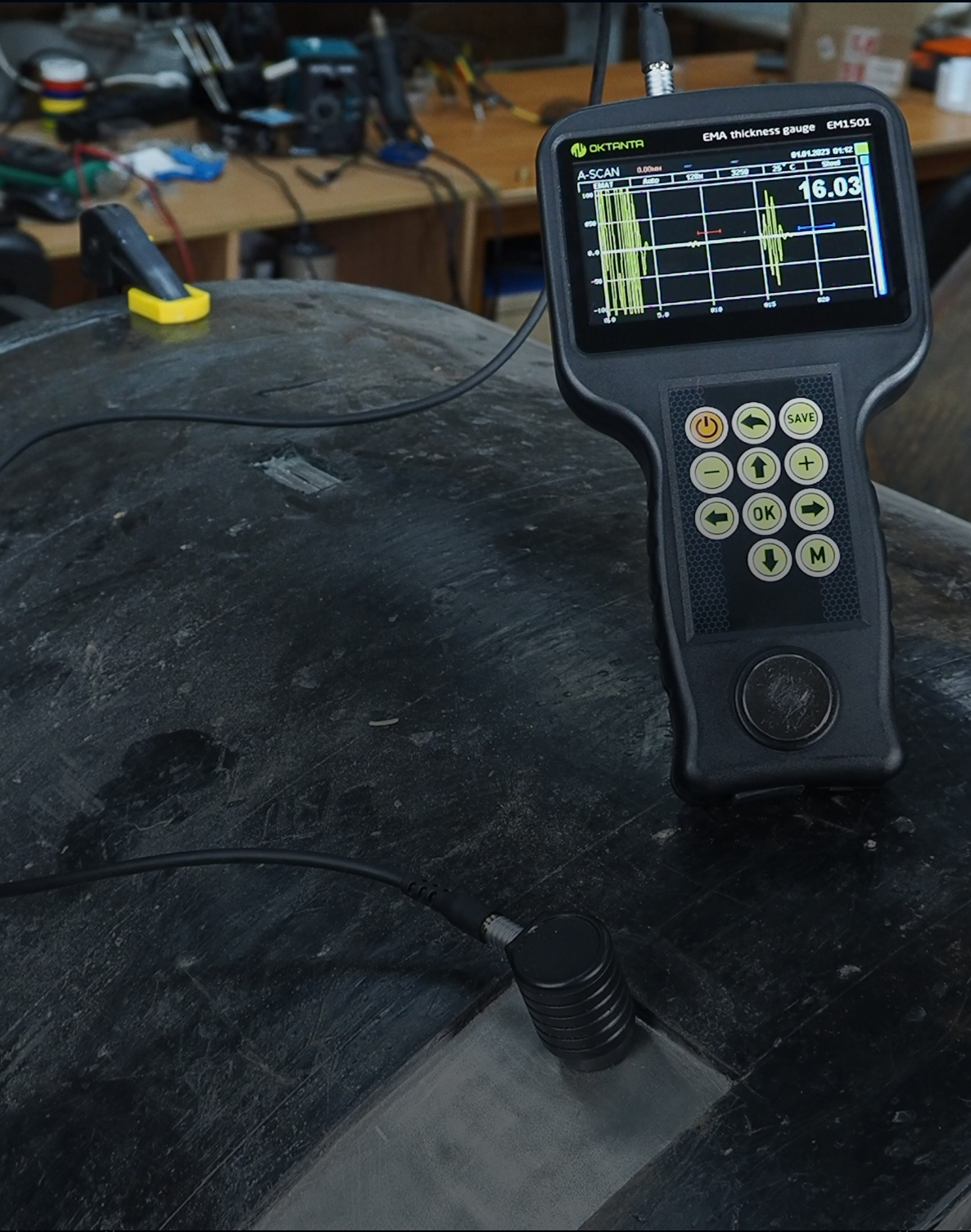

Just bring the transducer to the surface of the object being tested

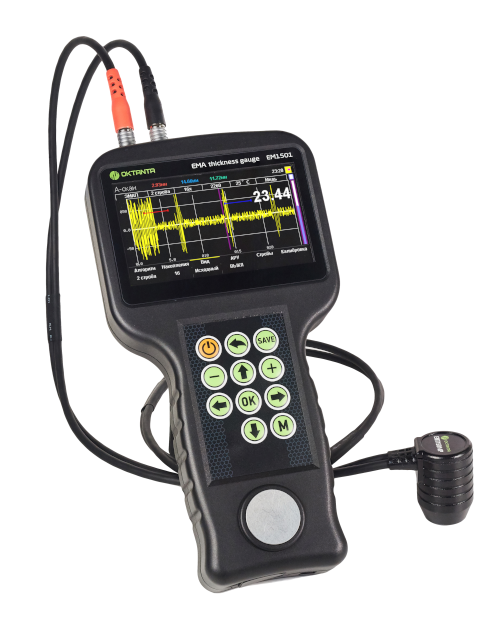

The EM1501 allows the user to analyze A-scans, visualize B-scans, save data on C-scans and work with gates, select a thickness measurement mode, signal processing parameters, etc.

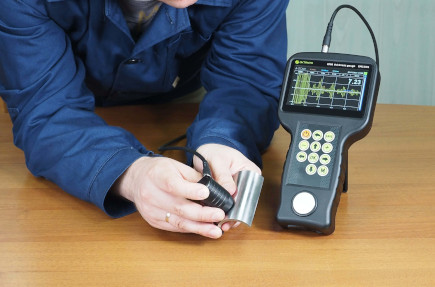

Works both on flat surfaces and on surfaces with a radius of curvature of 10 mm and more

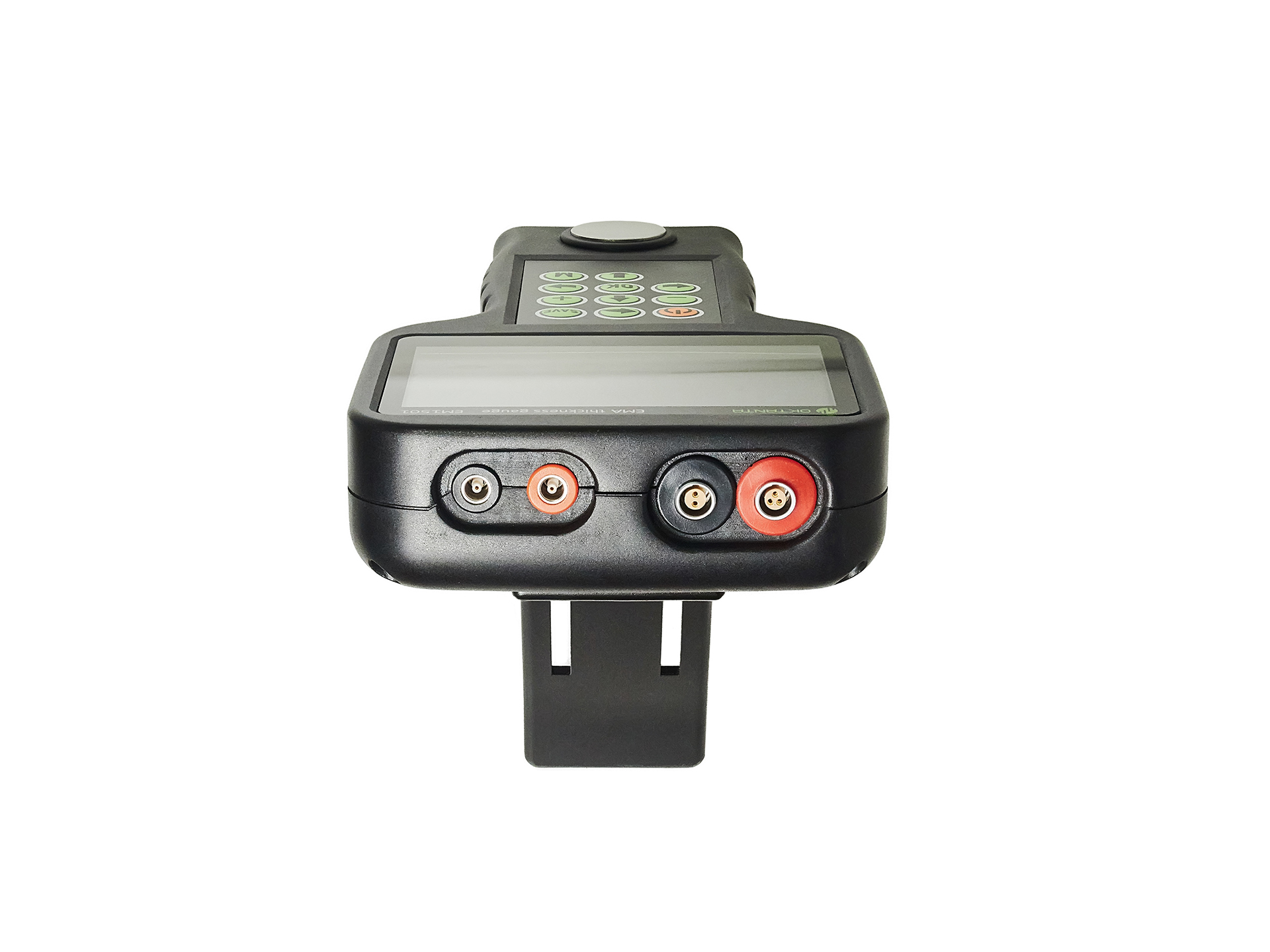

The EM1501 has two independent measuring channels: EMA and Piezoelectric, that ensuring increased inspection reliability. Piezoelectric transducers are recommended for applications where the thickness of deposits on the metal surface prevents the use of EMA transducers and surface cleaning is required.
The EM1501 can operate with:
• EMA transducers with a pulsed electromagnet that does not stick to dirt

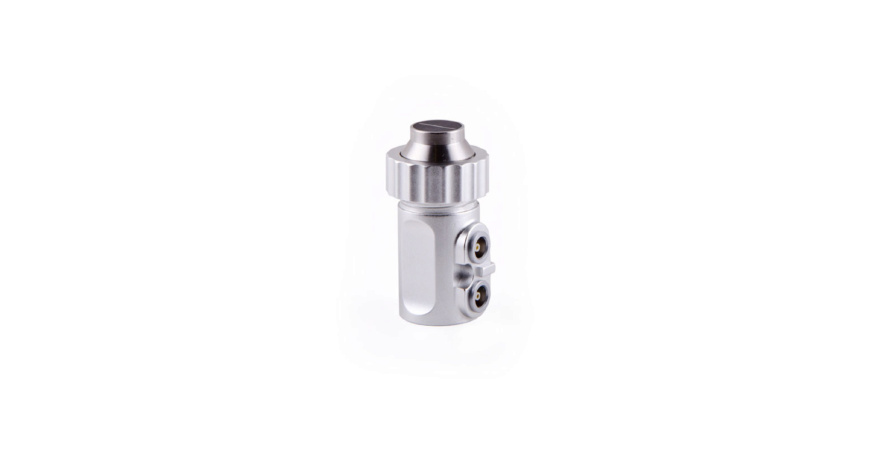

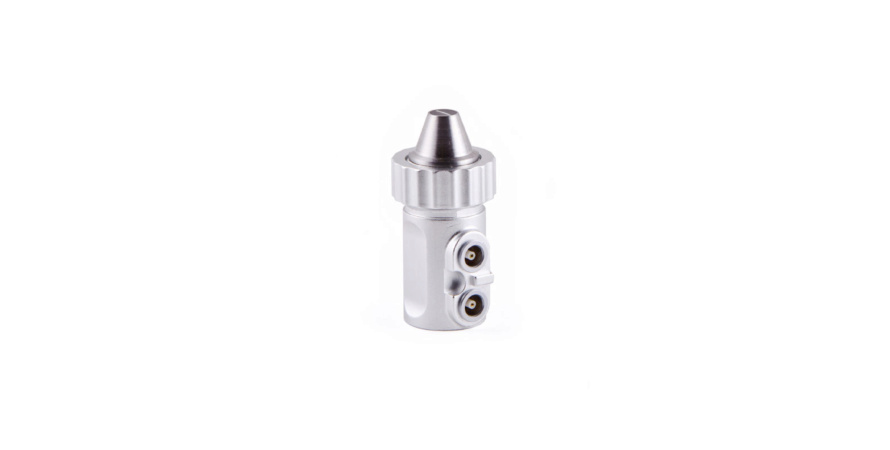

• piezoelectric transducers:
– transducer 5 MHz, aperture diameter is 10 mm,
– transducer 5 MHz, aperture diameter is 7.2 mm,
– transducer 10 MHz, aperture diameter is 5 mm.
• standard EMA transducers with a permanent magnet.

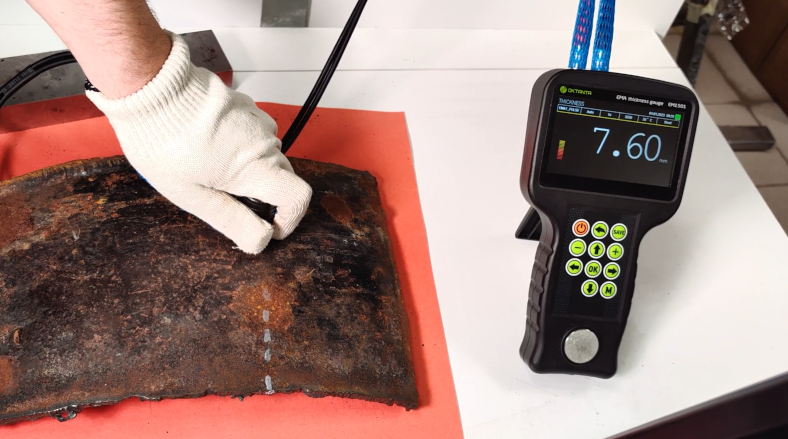

Watch the video (4 min)
Technical specifications
The EM1501 thickness gauge
-
Range of operating ambient temperature-20…+50 °С
-
Duration of continuous work without battery recharge7 hours
-
Range of sound velocity setting1000…9999 m/s with 1 m/s step
-
Highest number of measurements per second16
-
Dimensions232 x 135 x 44 mm
For EMA transducers:
-
Range of measured thickness for steel2…80 mm
-
Range of measured thickness for steel without clearance2…200 mm
-
Thickness measurement error 2…25 mm0.08+0.001·Н mm
-
Thickness measurement error 25…200 mm0.1+0.005·Н mm
-
Permissible gap between the EMT14012 transducer and the test objectUp to 4 mm
-
Permissible gap between the EMAT with a pulsed electromagnet and the test objectUp to 4 mm
-

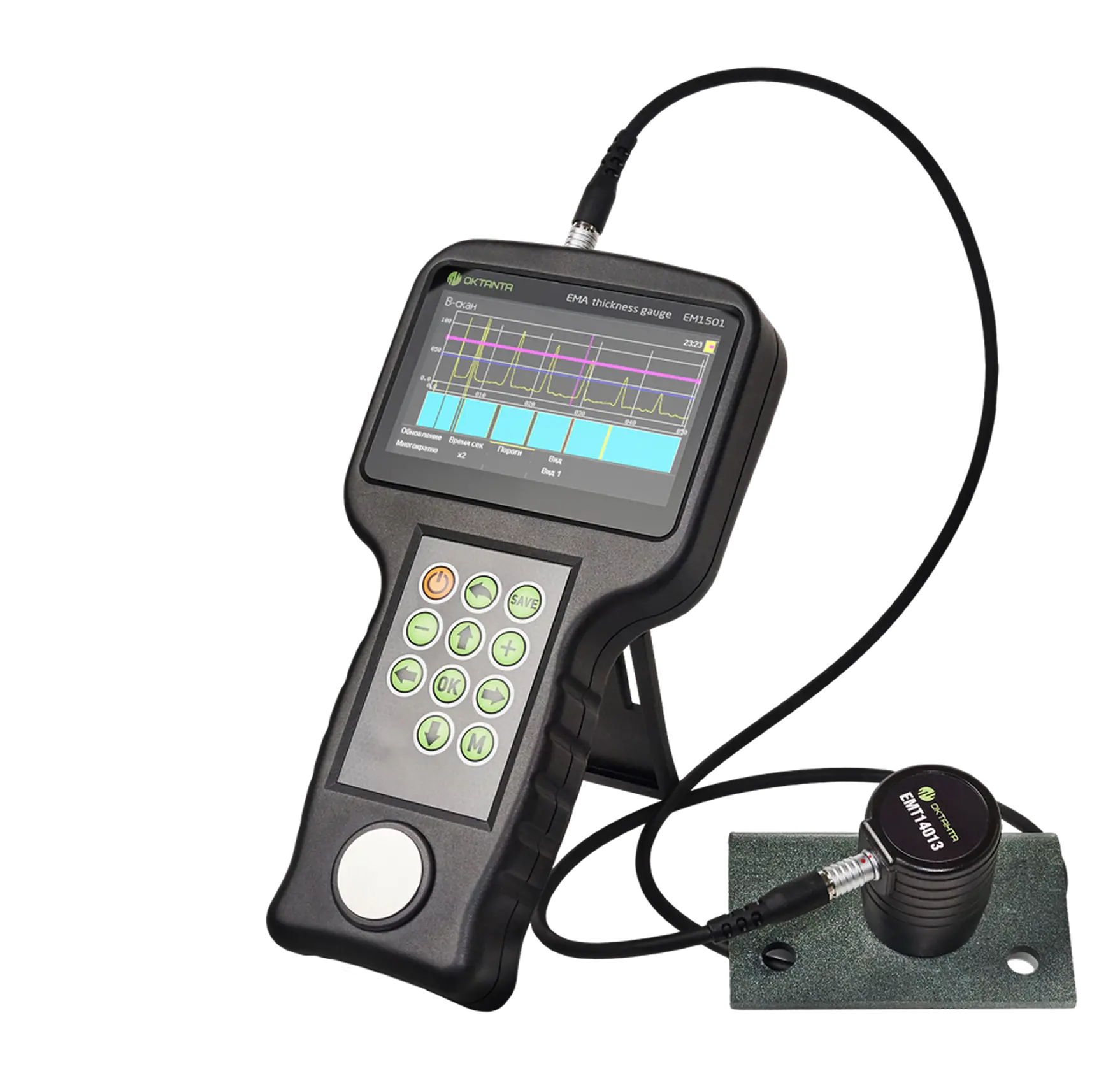

Permissible gap between the ЕМТ14013 transducer and the test objectUp to 7 mm
-
Permissible transducer tilt relative to the normal to the test object surface±25 °
-
Lowest permissible radius of curvature of the test object surface≥10 mm
-
Operating frequency of the device4 MHz
-
Range of operating temperature on the test object surface-20…+80 °C
(-20…+750 °C where the EMT14014Т transducer is used)
For piezoelectric transducers:
-
Range of measured thickness for steel0.5…300 mm
-
Thickness measurement error 0.5…25 mm0.08 mm
-
Thickness measurement error 25…300mm0.1 mm
-
Lowest permissible radius of curvature of the test object surface25 mm
-
Operating frequency of the device5 MHz, 10 MHz
-
Range of operating temperature on the test object surface-10…+60 °C

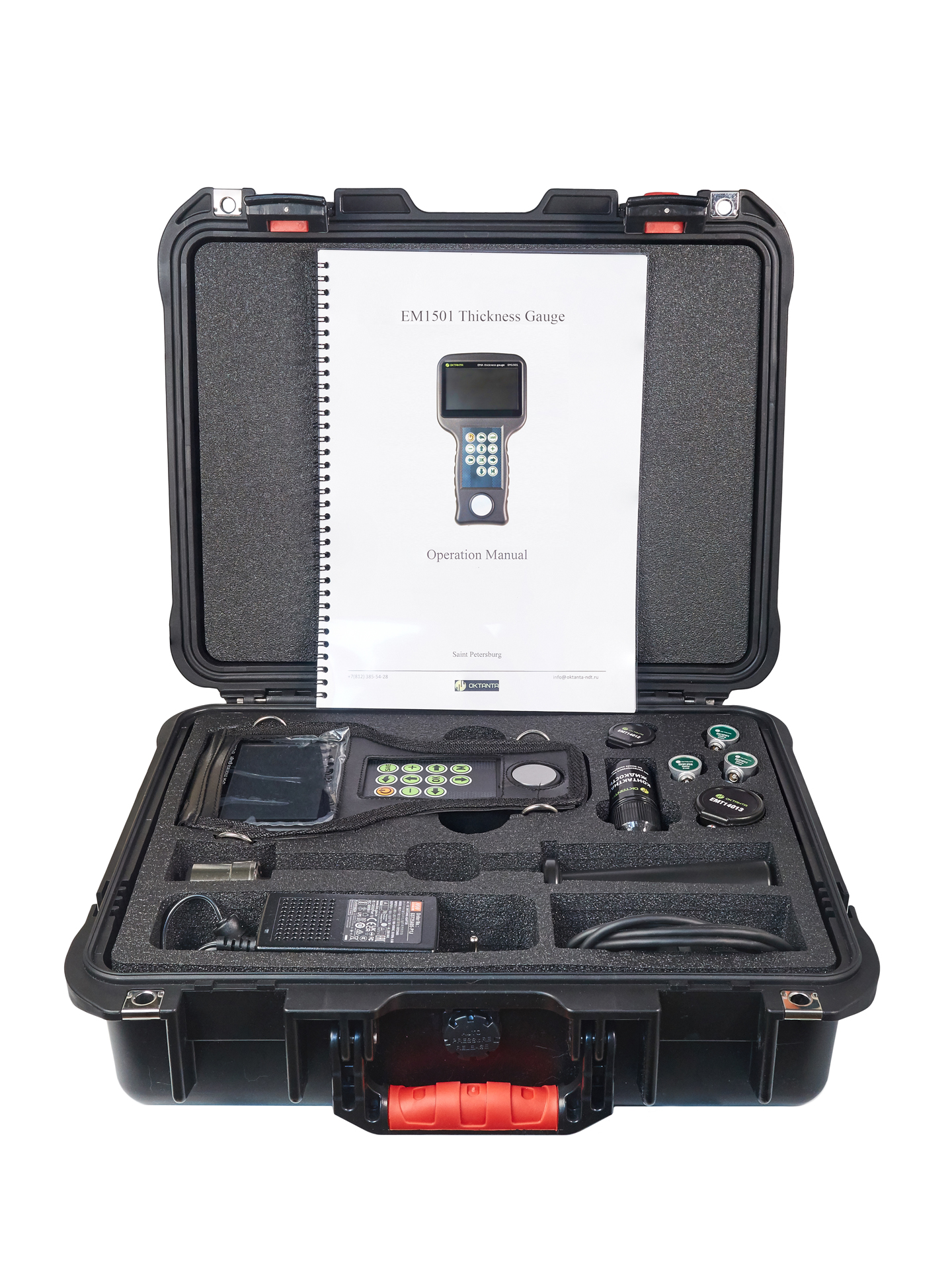

ACCESSORIES

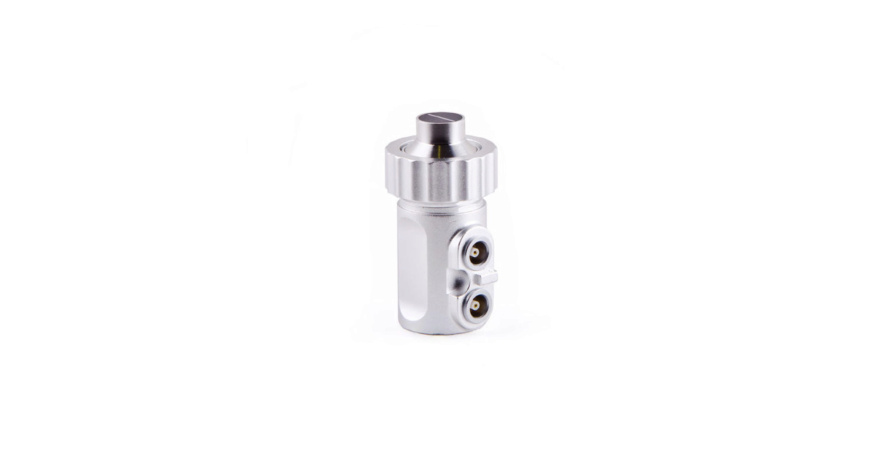

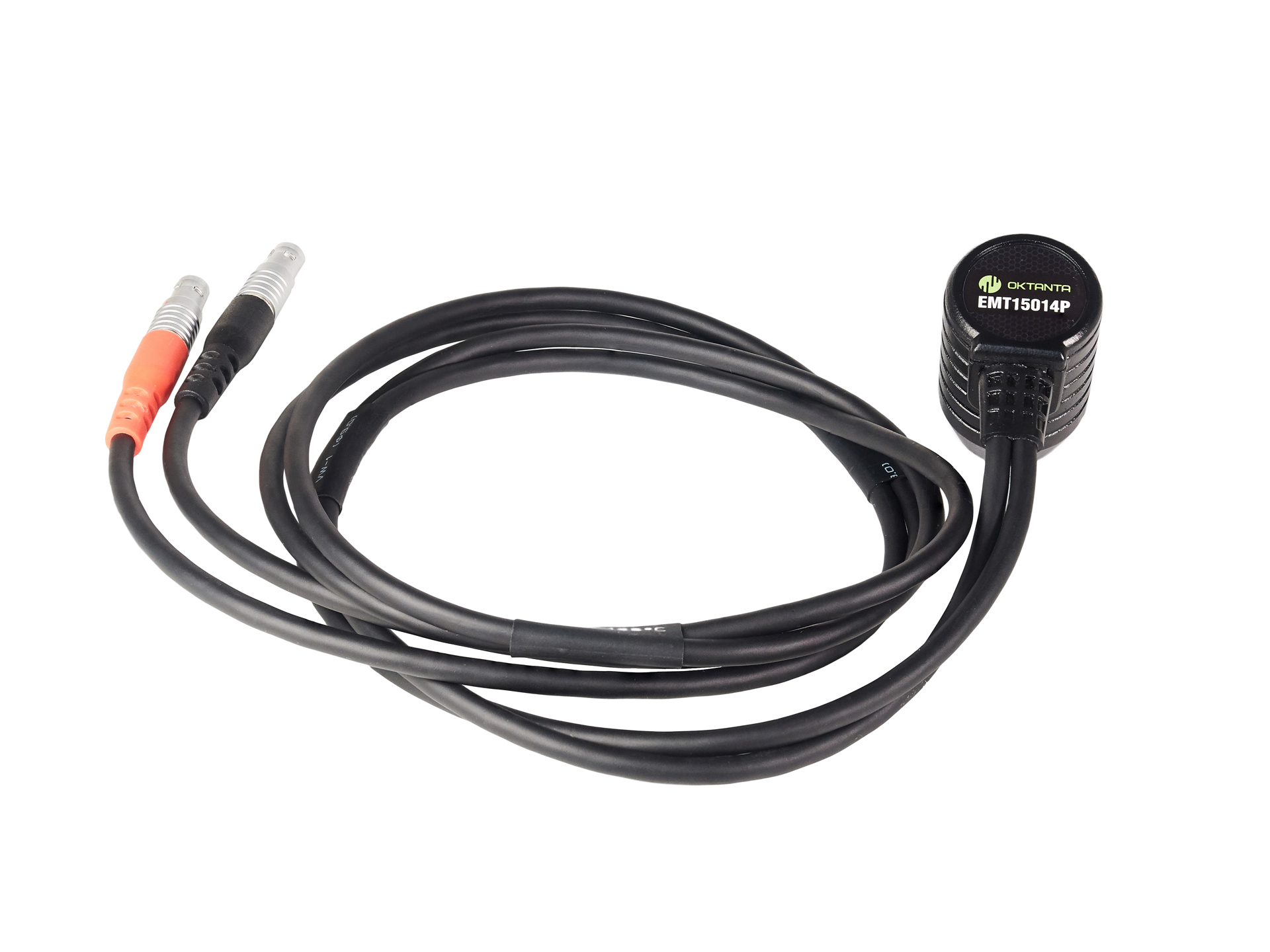

High temperature EMA transducer for operation with objects heated up to 750 °C
Transducer with a pulsed electromagnet for operation with objects heated up to 750 °C
Transducer for operation with a gap up to 3 mm
Transducer for operation with a gap up to 4 mm
Transducer for operation with a gap up to 4 mm
Transducer for operation with a gap up to 7 mm
Transducer for operation with a gap up to 7 mm
EMA transducer with a pulsed electromagnet
Piezoelectric transducer 5 MHz, 10 mm
Piezoelectric transducer 5 MHz, 7.2 mm
Piezoelectric transducer 10 MHz, 5 mm
Power adapter for the EM1501 thickness gauge

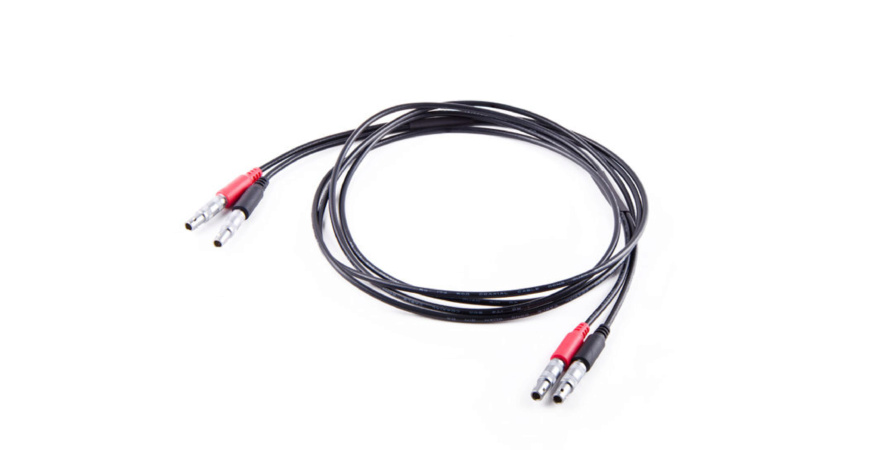

Cable to connect the EM1401 UT, EM1401, EM1501 EMA transducers
Cable to connect the EM1401 UT, EM1501 piezoelectric transducers
Protective cover for the EM1501 thickness gauges
