EM4000

EMA pocket thickness gauge.

Measures metal and coating thickness

ORDER (price on request)

Video about EM4000

EM4000 Brochure

At your request, we will complement the device with wearable AR glasses

Metal + Coating thickness measurement

Operating gap:
up to 3 mm

Metal + Coating thickness measurement

The EM4000 measures both the metal thickness and the coating thickness

High-temperature transducer

For standard EMA transducers, the operating temperature range on the test object surface is -20…+80 °С. Special EMT40004T transducer measures thickness on objects heated up to 750 °C

No cleaning, No couplant

The EM4000 measures thickness without usage of couplant and without surface preparation

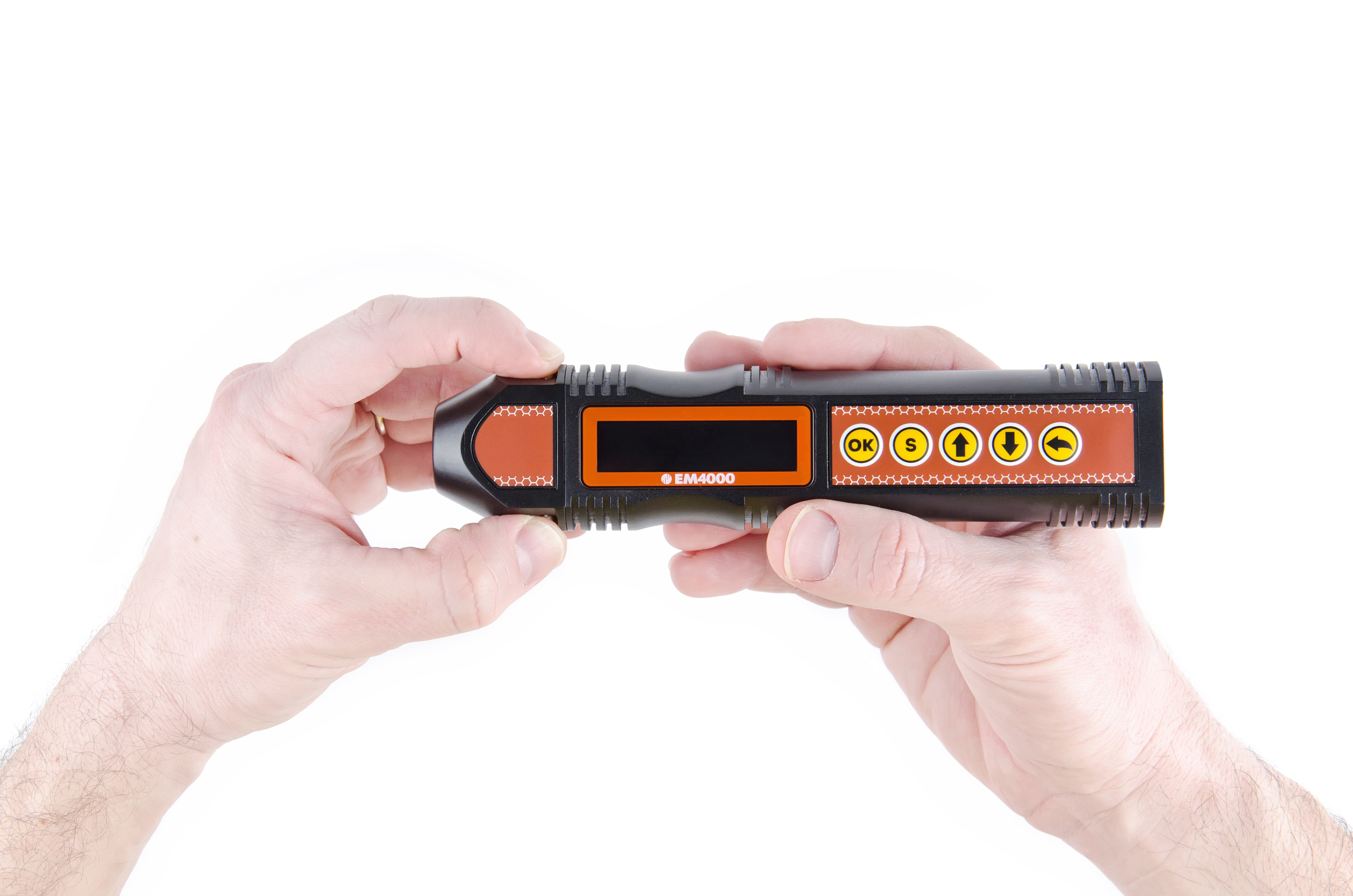

EM4000 Thickness Gauge

A pocket-size thickness gauge. Working with A-scan on the display is implemented

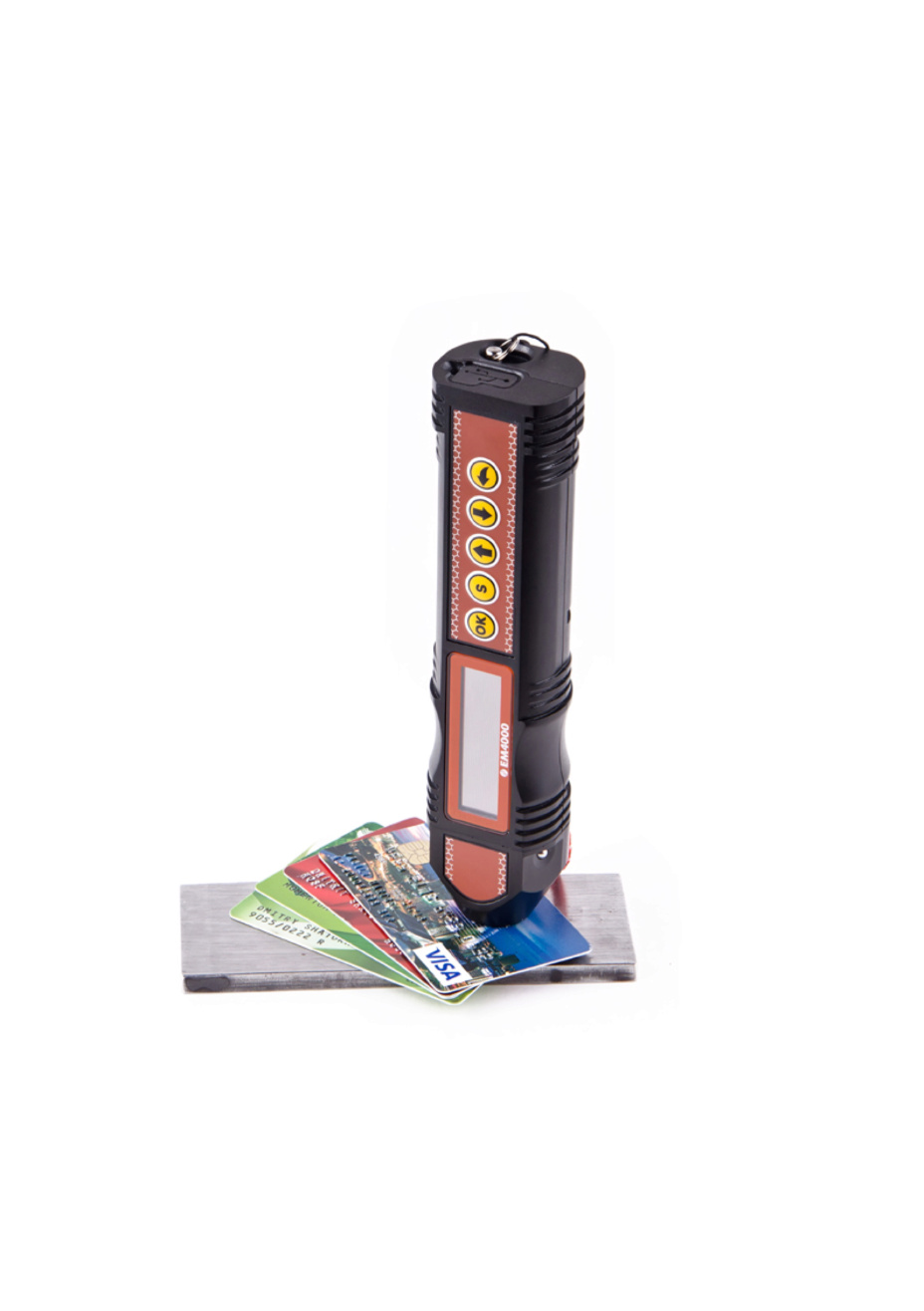

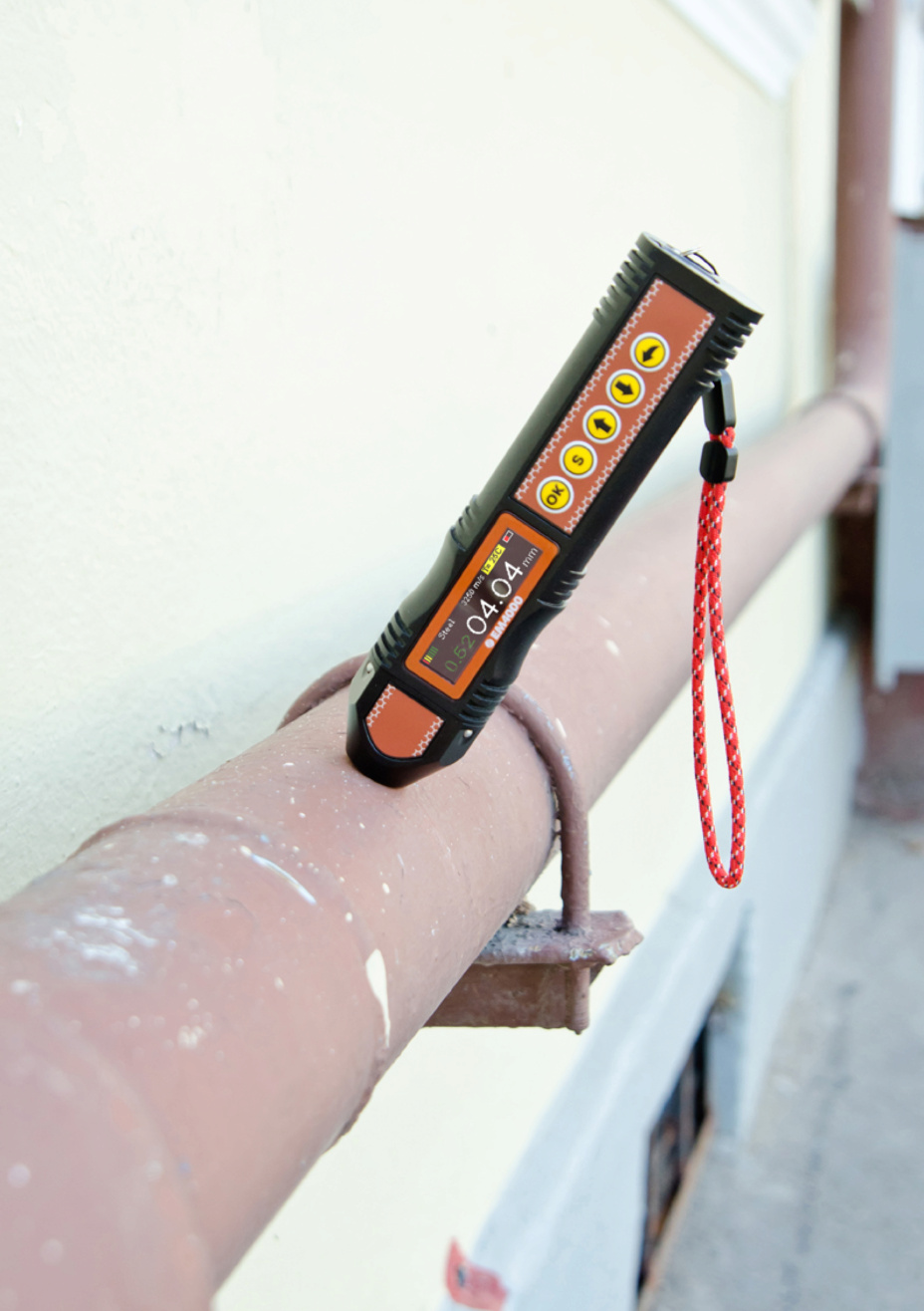

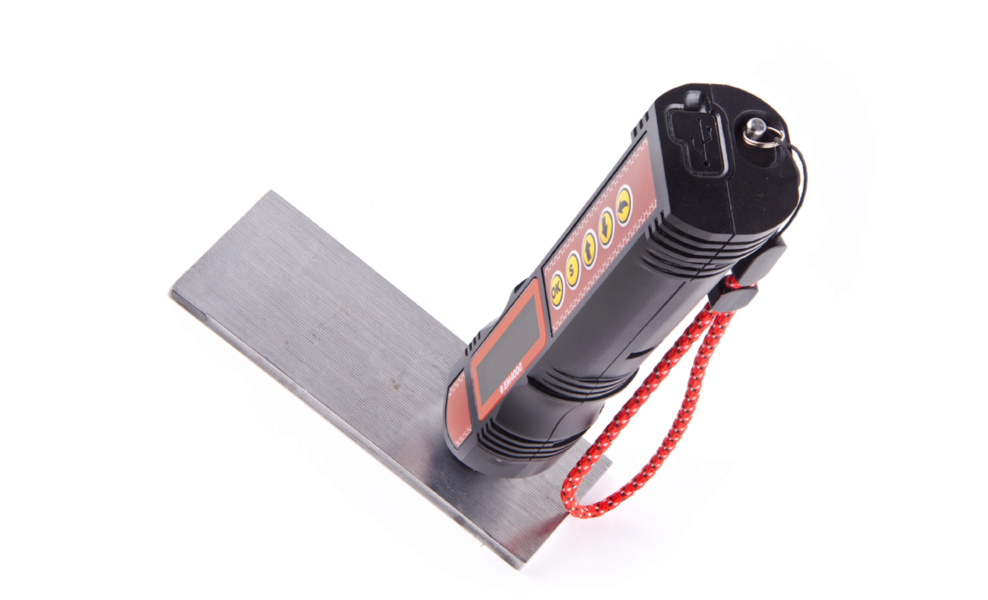

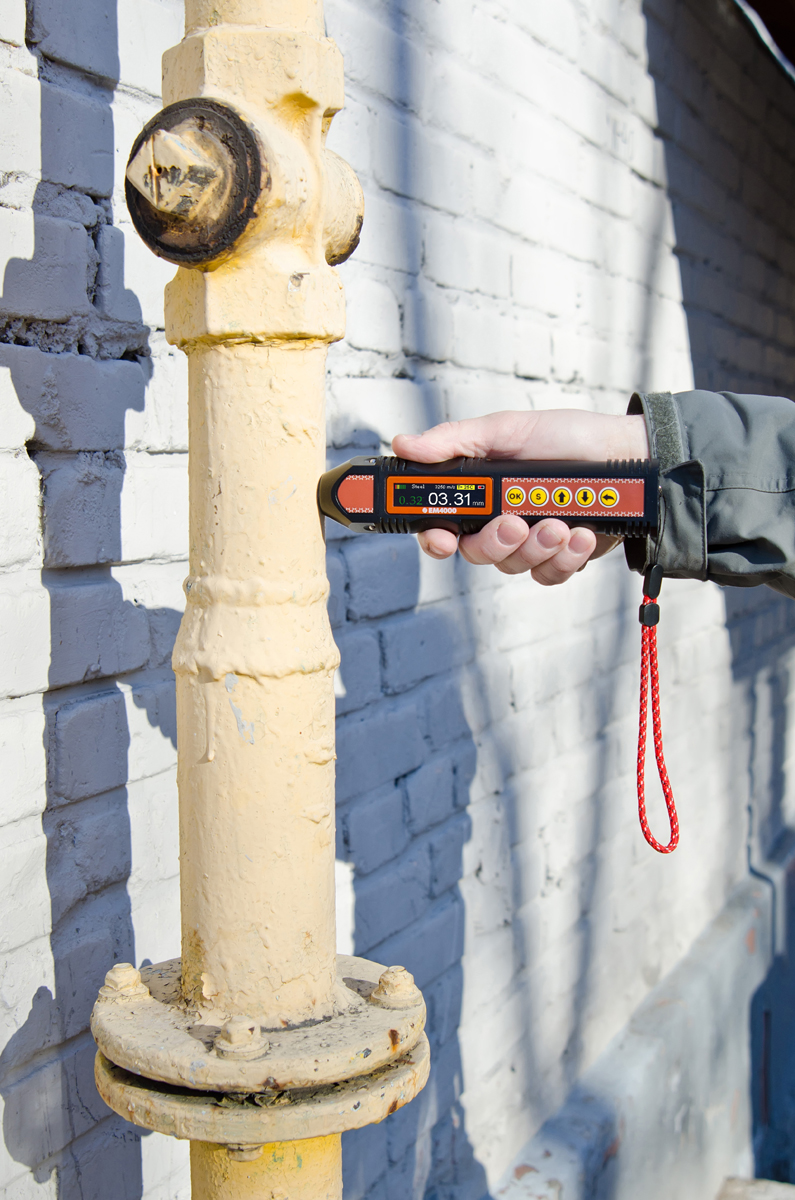

The EM4000 EMA thickness gauge measures thickness of steel pipes, sheet metal, rods, and other products made from steel, aluminum and other metals, with an operating gap between the transducer and metal of up to 3 mm. The gap can consist of dirt, rust, salt deposits, paint, varnish, enamel, plastic or other non-conductive coating.

EM4000 allows measurements without usage of couplant and without surface preparation.

In addition to measuring metal thickness, the EM4000 allows measuring the thickness of non-conductive coating on metal.

Tilt angle makes a minor effect on the device’s readings, in contrast to conventional thickness gauges with piezoelectric transducers that require transducer fixed in a certain position.

ORDER (price on request)

EM4000 Brochure

EM4000 Manual

ScanView Manual

EM4000 + Inmo Air 2 Glasses

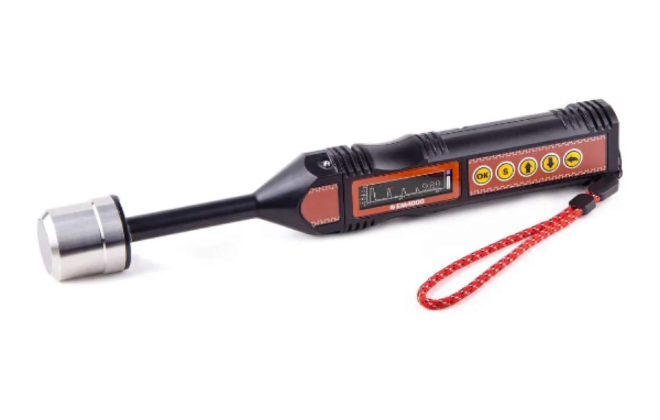

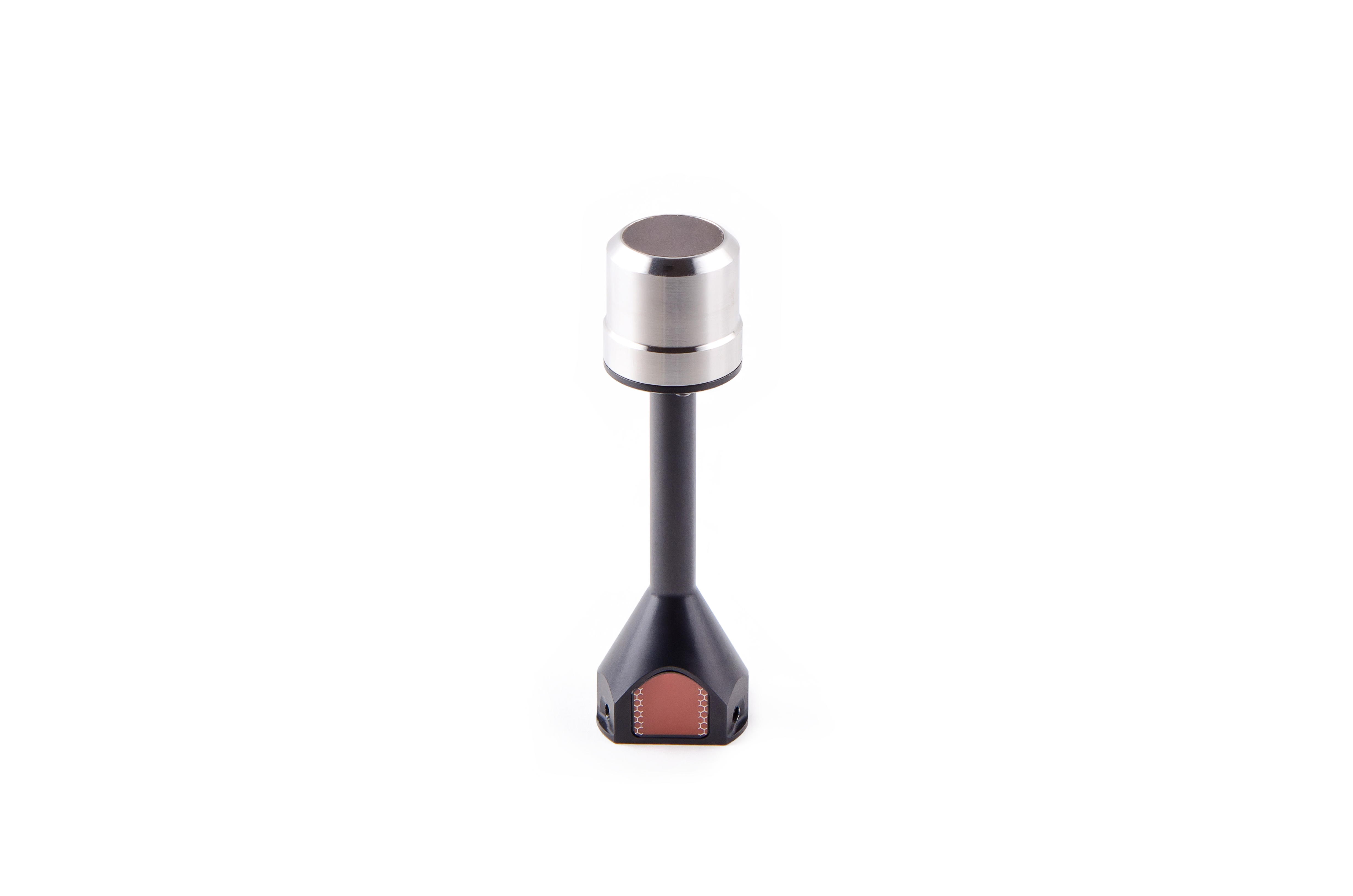

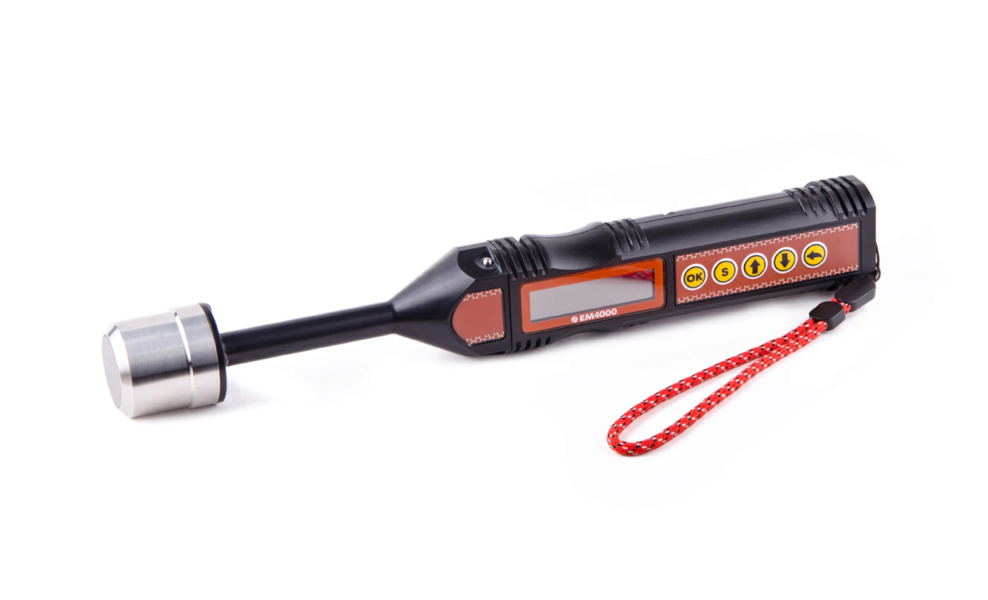

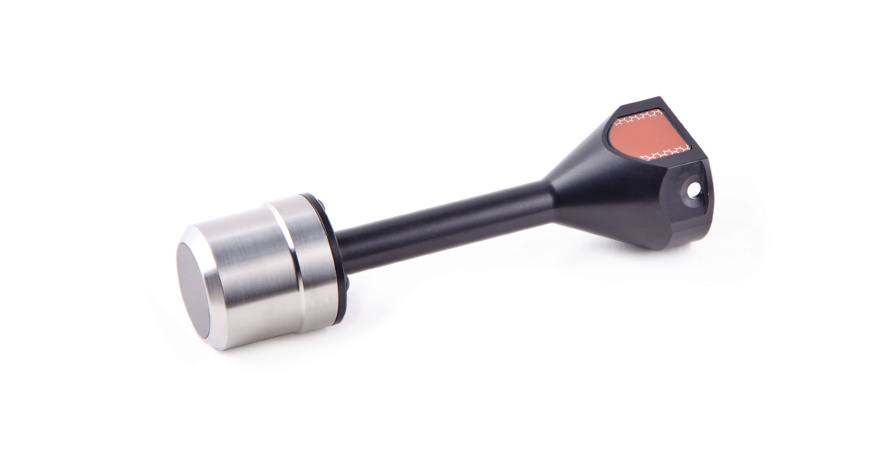

A special high-temperature transducer allows inspection of hot objects heated up to 750 °C.

The EM4000 thickness gauge has a color display protected by impact-resistant glass.

The device uses a special data processing algorithm that provides correct thickness measurements in the presence of disturbing factors such as metal anisotropy, usage of several reflectors, exposure to external interference. The algorithm allows reducing the human factor and simplifying the device interface.

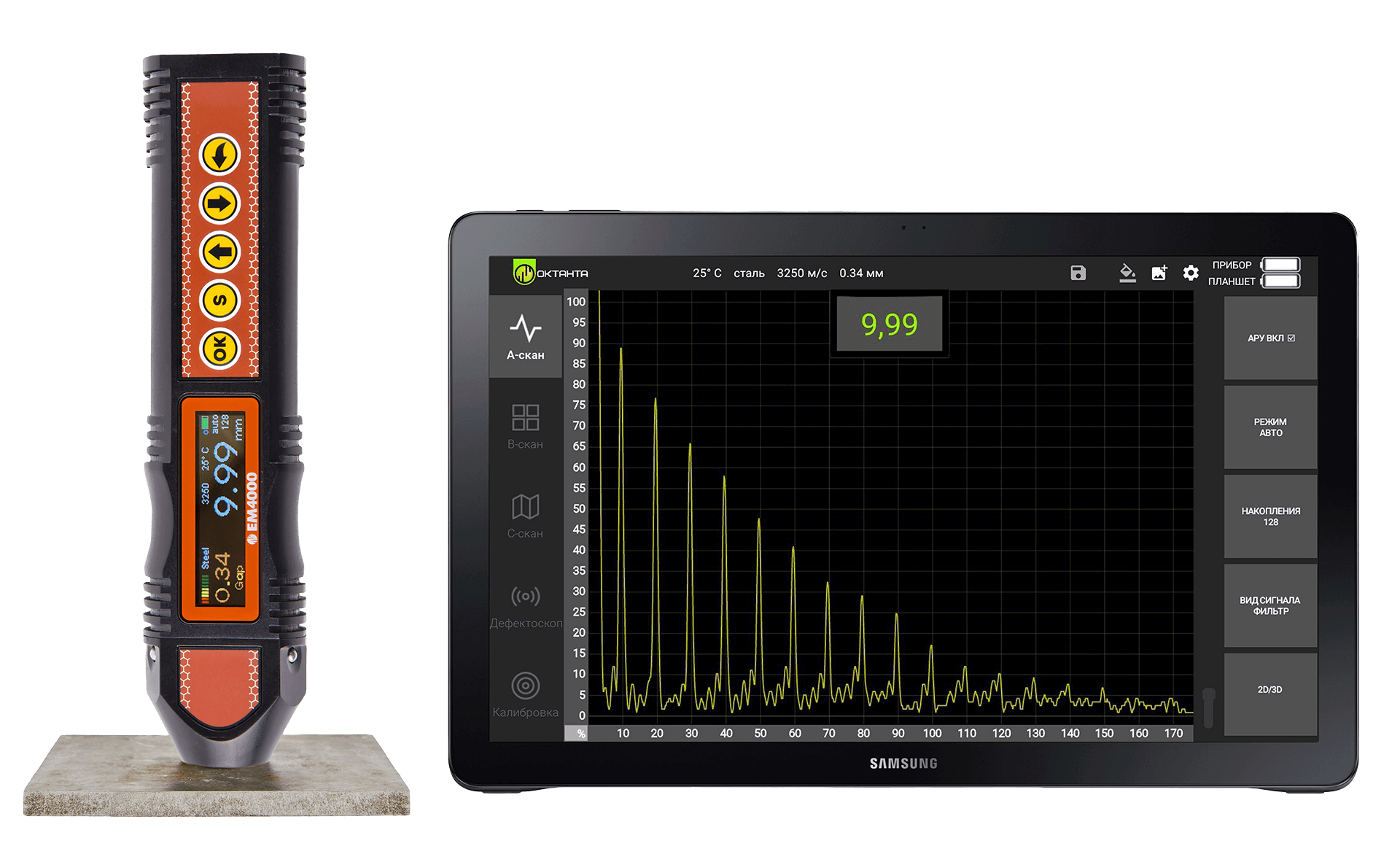

Connection to a tablet, smartphone or another Android device allows expanding the EM4000 features: analyzing A-scans, B-scans, working with gates, selecting a thickness measurement mode, signal processing parameters, etc. The EM4000 can be connected to a tablet via Bluetooth.

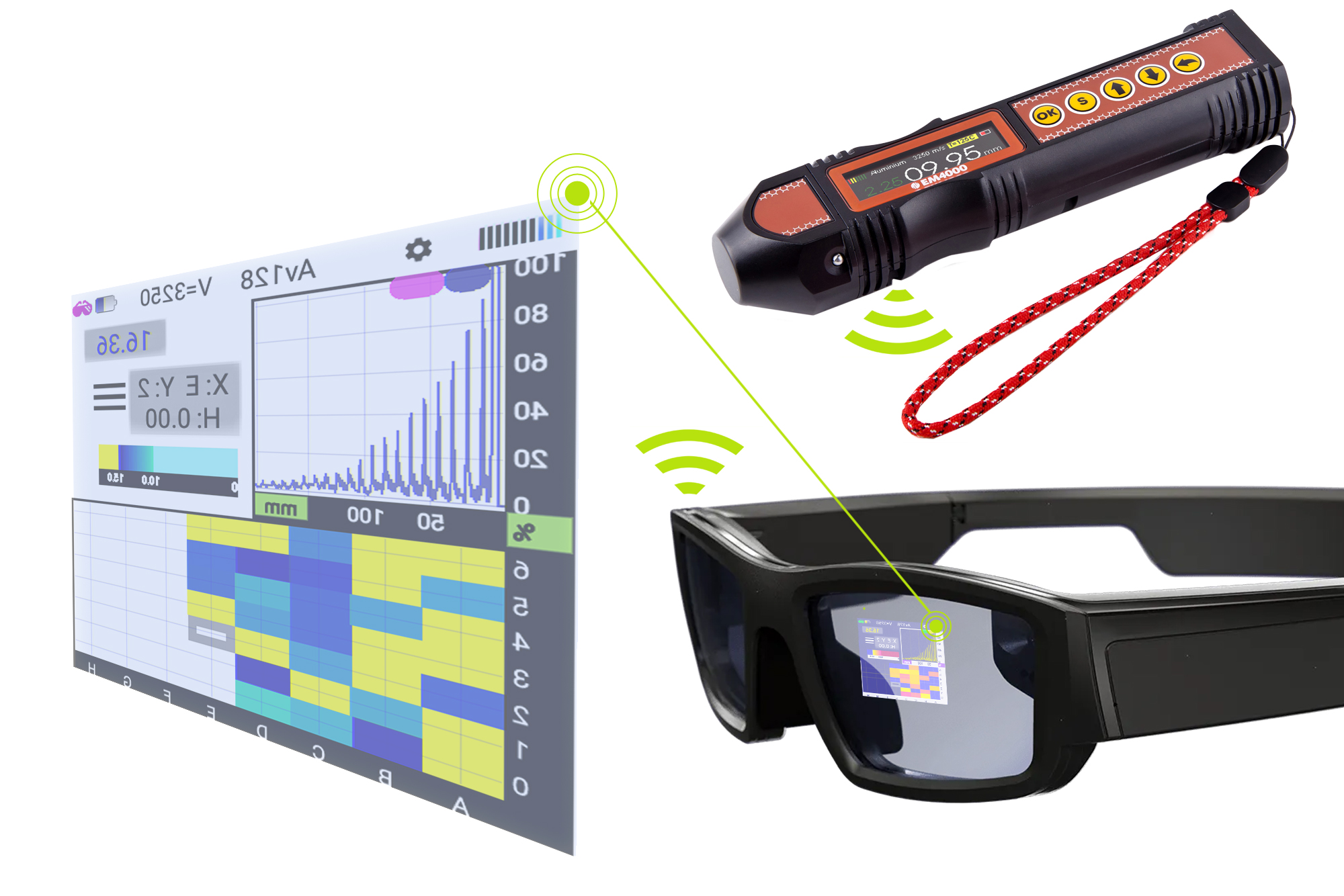

At your request, the EM4000 can be equipped with AR glasses. AR glasses allow using the EM4000 in hard-to-reach places, where display readouts are impossible or difficult. In this case the readouts are displayed on the lenses of AR glasses and the operator can always see them.
